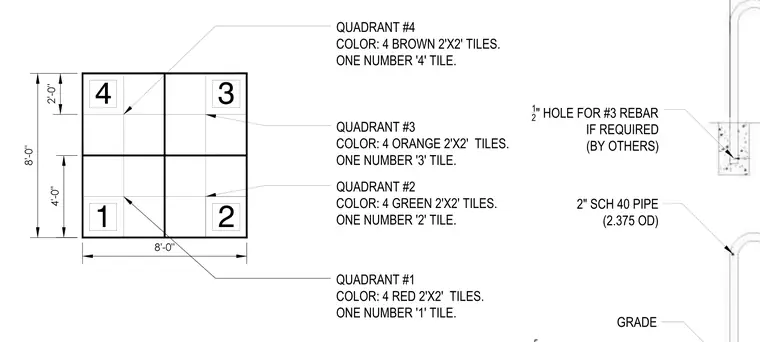

An eight-foot by eight-foot play surfacing layout comprises four distinct quadrants of two-foot by two-foot rubber tiles in red, green, orange, and brown, with each quadrant containing a numbered tile. The assembly features a two-inch schedule 40 pipe with a two-point-three-seven-five-inch outside diameter extending eight feet above grade, detailed with a one-half-inch hole for number three rebar if required by others.
1 2 " HOLE FOR #3 REBAR IF REQUIRED (BY OTHERS) 2" SCH 40 PIPE (2.375 OD) GRADE 8'-0" QUADRANT #2 COLOR: 4 GREEN 2'X2' TILES. ONE NUMBER '2' TILE. QUADRANT #1 COLOR: 4 RED 2'X2' TILES. ONE NUMBER '1' TILE. QUADRANT #3 COLOR: 4 ORANGE 2'X2' TILES. ONE NUMBER '3' TILE. QUADRANT #4 COLOR: 4 BROWN 2'X2' TILES. ONE NUMBER '4' TILE.
