Landscape · L-B5SRB

Planting Tray Detail

Materials

Elements

About this detail

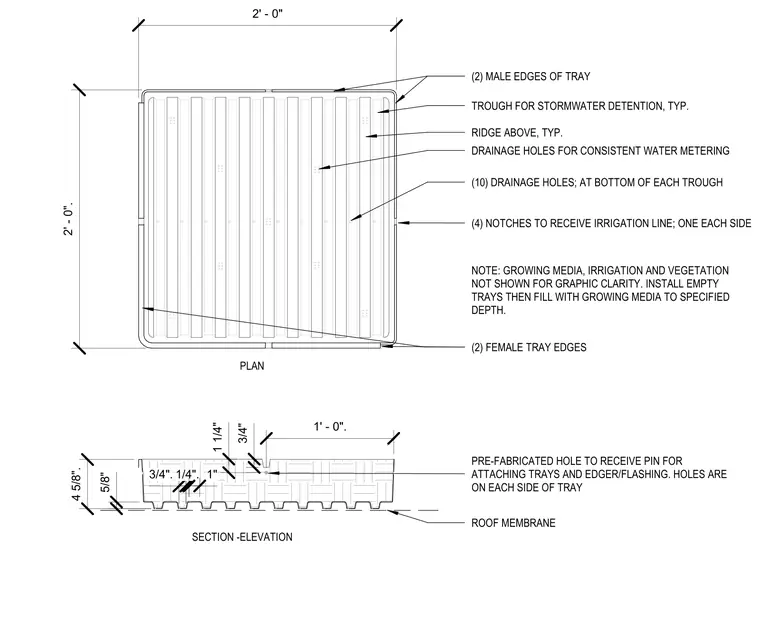

A pre-fabricated green roof planting tray measuring two feet by two feet with a height of four and five-eighths inches is positioned over the roof membrane. The plan view has two male tray edges, two female tray edges, and four notches to receive irrigation lines with one on each side. Ten drainage holes are located at the bottom of each trough for consistent water metering alongside ridges and stormwater detention troughs. The section-elevation view details pre-fabricated holes to receive pins for attaching trays and edger flashing on each side of the tray. Empty trays are installed first and then filled with growing media to the specified depth, with growing media, irrigation, and vegetation omitted for graphic clarity.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
