Landscape · L-B587Z

Single Box Header Configuration

Units: imperial
Sheet: LO-S1.4.3
Discipline: Landscape

Materials

Cold-formed Steel

Elements

Beams Walls

Text on the drawing

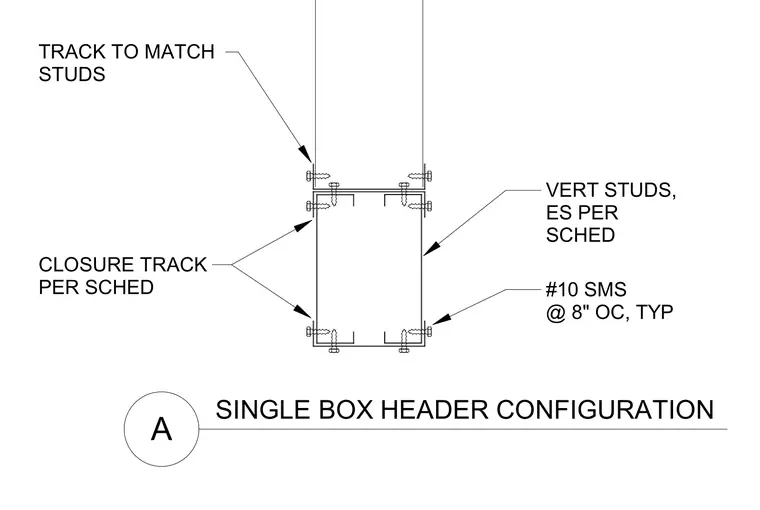

TRACK TO MATCH STUDS CLOSURE TRACK PER SCHED #10 SMS @ 8" OC, TYP ABOVE VERT STUDS, ES PER SCHED A SINGLE BOX HEADER CONFIGURATION
