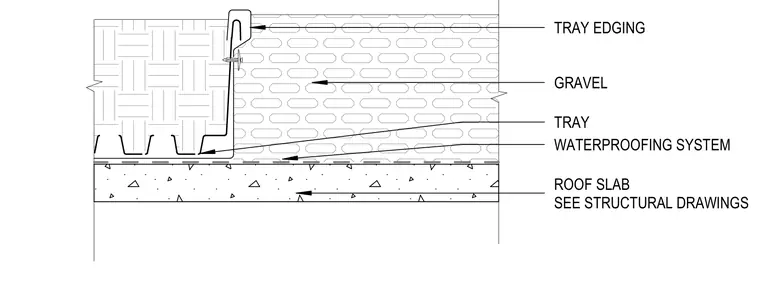

A planting tray edge transitions to a gravel bed over a roof slab, separated by a waterproofing system. The metal planting tray sits directly upon the waterproofed concrete slab and contains growing medium adjacent to a gravel ballast zone. Tray edging secures the vertical containment of the planting system. The underlying concrete roof slab is coordinated with structural drawings.
