Drip Irrigation Perimeter Laterals Plan Layout

Elements

About this detail

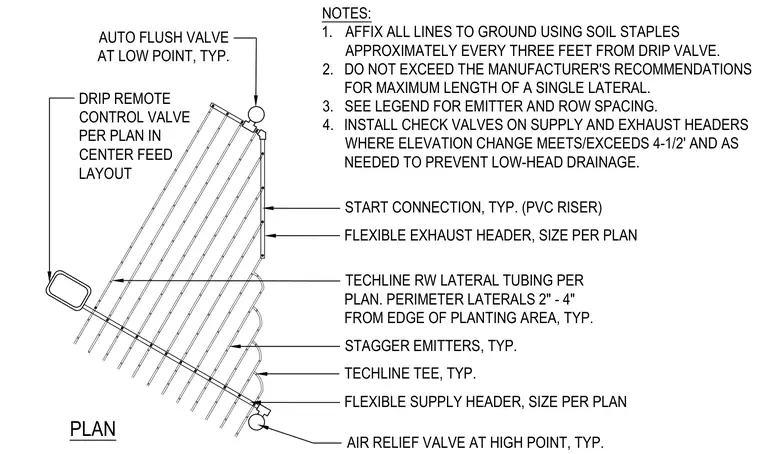

Techline RW lateral tubing is positioned two to four inches from the edge of the planting area with staggered emitters in a landscape drip irrigation layout. Flexible supply and exhaust headers sized per plan connect via PVC riser start connections and Techline tees. Soil staples affix all lines to the ground approximately every three feet from the drip valve. An automatic flush valve is located at the low point, an air relief valve is placed at the high point, and a drip remote control valve is positioned in a center feed layout. Check valves are installed on supply and exhaust headers where elevation changes meet or exceed four and one-half feet to prevent low-head drainage.
