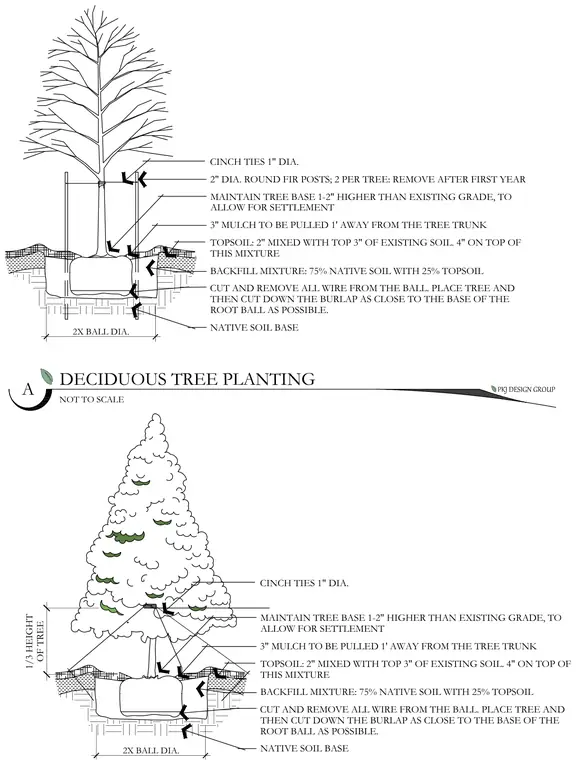

A deciduous tree is set into an excavated pit with a native soil base measuring twice the diameter of the root ball. All wire and burlap are cut and removed from the root ball as close to the base as possible. The backfill mixture consists of seventy-five percent native soil combined with twenty-five percent topsoil, topped with a mixed topsoil layer and a three-inch layer of mulch pulled one foot away from the trunk. The tree base is maintained one to two inches higher than the existing grade to allow for settlement. Two two-inch diameter round fir posts are installed and secured to the tree using one-inch diameter cinch ties positioned at one-third the height of the tree, designed for removal after the first year.
1/3 HEIGHT OF TREE PKJ DESIGN GROUP DECIDUOUS TREE PLANTING NOT TO SCALE A CINCH TIES 1" DIA. 2" DIA. ROUND FIR POSTS; 2 PER TREE: REMOVE AFTER FIRST YEAR MAINTAIN TREE BASE 1-2" HIGHER THAN EXISTING GRADE, TO ALLOW FOR SETTLEMENT 3" MULCH TO BE PULLED 1' AWAY FROM THE TREE TRUNK TOPSOIL: 2" MIXED WITH TOP 3" OF EXISTING SOIL. 4" ON TOP OF THIS MIXTURE BACKFILL MIXTURE: 75% NATIVE SOIL WITH 25% TOPSOIL CUT AND REMOVE ALL WIRE FROM THE BALL. PLACE TREE AND THEN CUT DOWN THE BURLAP AS CLOSE TO THE BASE OF THE ROOT BALL AS POSSIBLE. NATIVE SOIL BASE 2X BALL DIA. CINCH TIES 1" DIA. MAINTAIN TREE BASE 1-2" HIGHER THAN EXISTING GRADE, TO ALLOW FOR SETTLEMENT 3" MULCH TO BE PULLED 1' AWAY FROM THE TREE TRUNK TOPSOIL: 2" MIXED WITH TOP 3" OF EXISTING SOIL. 4" ON TOP OF THIS MIXTURE BACKFILL MIXTURE: 75% NATIVE SOIL WITH 25% TOPSOIL CUT AND REMOVE ALL WIRE FROM THE BALL. PLACE TREE AND THEN CUT DOWN THE BURLAP AS CLOSE TO THE BASE OF THE ROOT BALL AS POSSIBLE. NATIVE SOIL BASE 2X BALL DIA. t4 USm nl TT / 7 % * ■) J t C ^ V j v_V ^J. ^ccL C L 'U \ / an V t < TT rrr i i r
