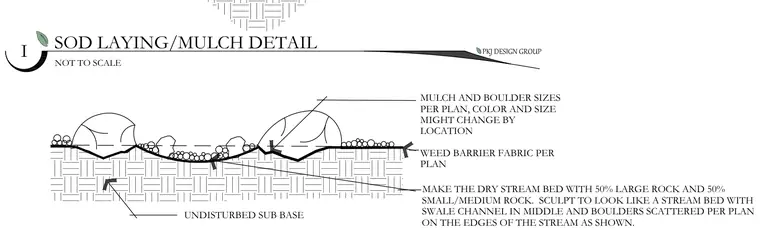

A dry stream bed installation features a swale channel constructed over an undisturbed subbase. A layer of weed barrier fabric underlies the entire assembly, supporting a mix of fifty percent large rock and fifty percent small to medium rock within the stream channel. Boulders are scattered along the edges of the stream as specified per plan. Mulch is placed adjacent to the stone bed, with sizes and colors varying by location.
PKJ DESIGN GROUP SOD LAYING/MULCH DETAIL NOT TO SCALE I MULCH AND BOULDER SIZES PER PLAN, COLOR AND SIZE MIGHT CHANGE BY LOCATION WEED BARRIER FABRIC PER PLAN UNDISTURBED SUB BASE MAKE THE DRY STREAM BED WITH 50% LARGE ROCK AND 50% SMALL/MEDIUM ROCK. SCULPT TO LOOK LIKE A STREAM BED WITH SWALE CHANNEL IN MIDDLE AND BOULDERS SCATTERED PER PLAN ON THE EDGES OF THE STREAM AS SHOWN. “I -I \ / < I I I I I I I I
