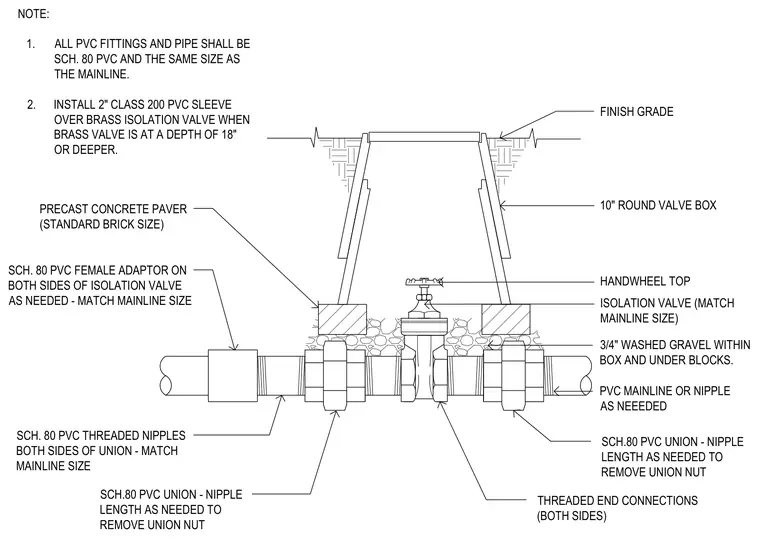

An inline threaded isolation valve is connected to Schedule 80 PVC mainline piping using Schedule 80 PVC female adaptors and threaded nipples on both sides. Schedule 80 PVC unions with appropriately sized nipples are installed adjacent to the valve to allow clearance for removing the union nuts. The entire assembly sits on a bed of three-quarter-inch washed gravel inside a ten-inch round valve box, which is supported by precast concrete pavers at finish grade. A two-inch Class 200 PVC sleeve is installed over the brass isolation valve when it is buried at a depth of eighteen inches or greater.
10" ROUND VALVE BOX FINISH GRADE ISOLATION VALVE (MATCH MAINLINE SIZE) SCH.80 PVC UNION - NIPPLE LENGTH AS NEEDED TO REMOVE UNION NUT SCH. 80 PVC THREADED NIPPLES BOTH SIDES OF UNION - MATCH MAINLINE SIZE SCH. 80 PVC FEMALE ADAPTOR ON BOTH SIDES OF ISOLATION VALVE AS NEEDED - MATCH MAINLINE SIZE PVC MAINLINE OR NIPPLE AS NEEEDED SCH.80 PVC UNION - NIPPLE LENGTH AS NEEDED TO REMOVE UNION NUT NOTE: 1. ALL PVC FITTINGS AND PIPE SHALL BE SCH. 80 PVC AND THE SAME SIZE AS THE MAINLINE. 2. INSTALL 2" CLASS 200 PVC SLEEVE OVER BRASS ISOLATION VALVE WHEN BRASS VALVE IS AT A DEPTH OF 18" OR DEEPER. HANDWHEEL TOP THREADED END CONNECTIONS (BOTH SIDES) PRECAST CONCRETE PAVER (STANDARD BRICK SIZE) 3/4" WASHED GRAVEL WITHIN BOX AND UNDER BLOCKS.
