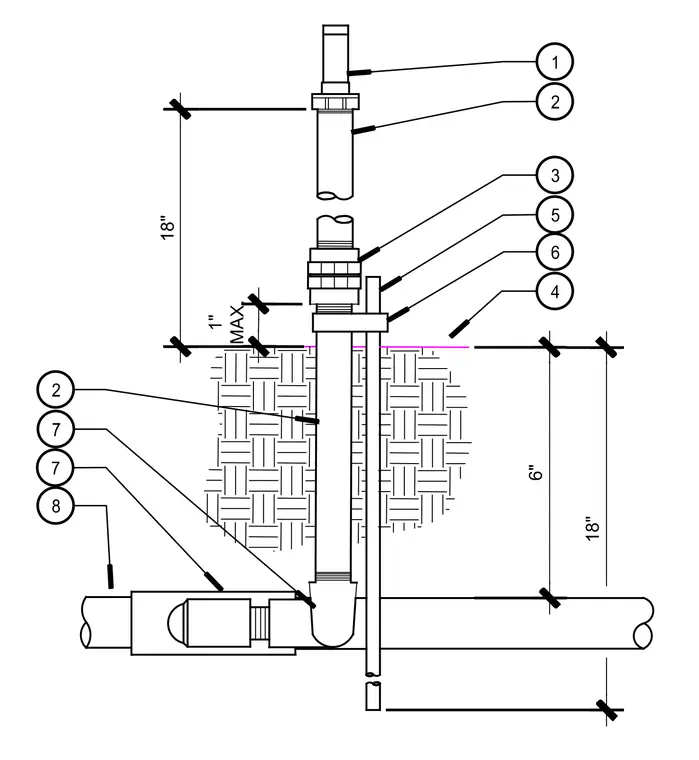

An irrigation pipe riser connects to a main underground supply pipe. The vertical riser assembly incorporates threaded pipe segments, a union fitting, and a threaded elbow connected to the horizontal supply pipe. A stabilization stake is secured to the riser pipe to maintain vertical alignment within the surrounding soil grade. Dimensions specify an eighteen-inch height above grade, a six-inch depth to the main supply line, and a one-inch maximum clearance for the support clamp.
