Architectural · L-AWVEF

No Smoking Signage

About this detail

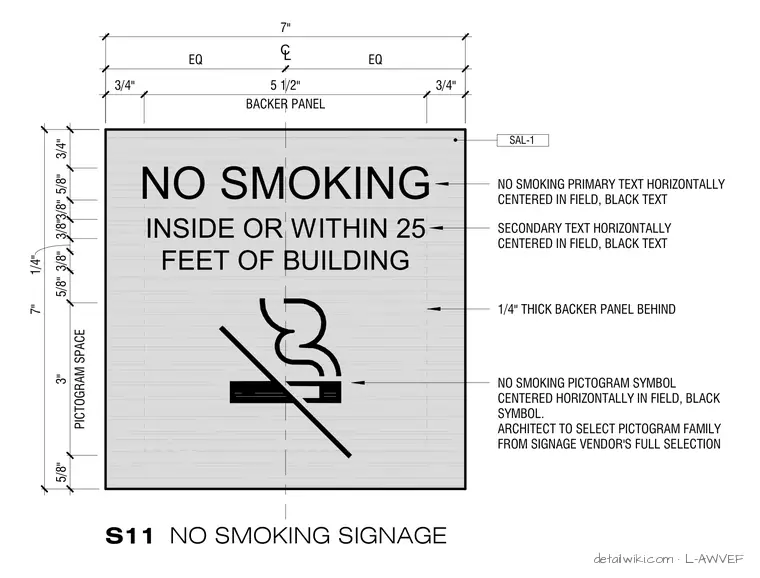

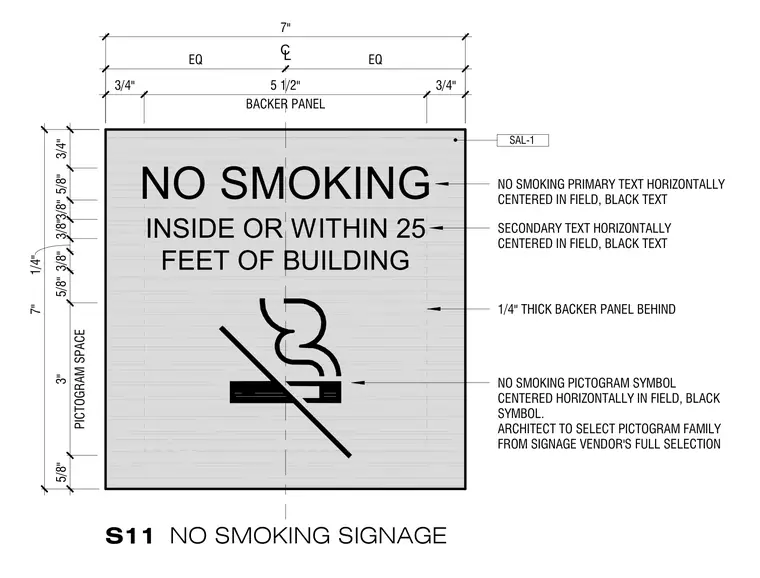

The wall-mounted no smoking sign features a backer panel measuring seven inches square overall, with a three-quarter inch backer panel and a one-quarter inch thick backer panel behind. The primary text reading NO SMOKING is horizontally centered in the field in black text, positioned five-eighths of an inch below the top margin. Secondary text reading INSIDE OR WITHIN 25 FEET OF BUILDING is horizontally centered below the primary text. A black no smoking pictogram symbol is centered horizontally in a three-inch pictogram space in the lower portion of the field. The architect selects the pictogram family from the signage vendor's full selection, referenced by designation SAL-1.
