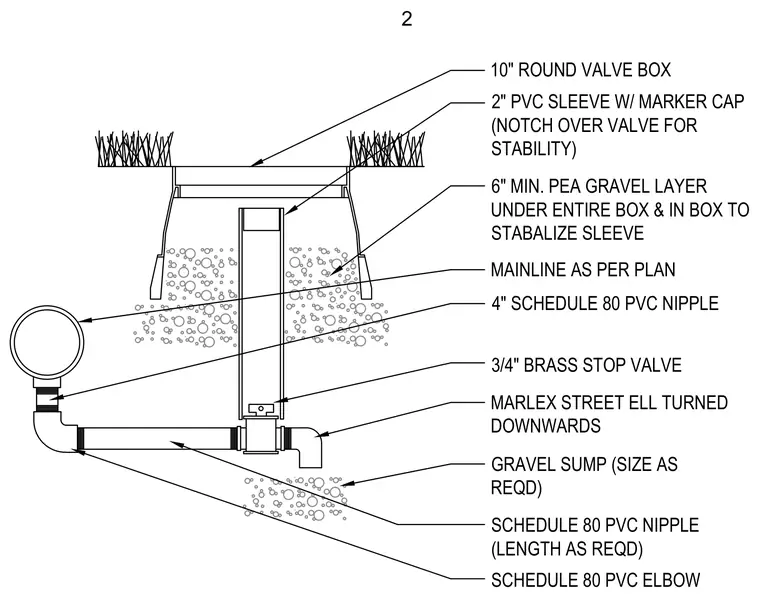

An underground irrigation mainline assembly features a ten-inch round valve box installed over a minimum six-inch layer of pea gravel. A two-inch PVC sleeve with a marker cap is notched over the valve for stability and surrounded by the gravel fill. The mainline connects to a four-inch schedule 80 PVC nipple, a three-quarter-inch brass stop valve, and a Marlex street elbow turned downwards into a gravel sump of required size. A schedule 80 PVC elbow and variable-length PVC nipple complete the drainage and supply run.
10" ROUND VALVE BOX 2" PVC SLEEVE W/ MARKER CAP (NOTCH OVER VALVE FOR STABILITY) 6" MIN. PEA GRAVEL LAYER UNDER ENTIRE BOX & IN BOX TO STABALIZE SLEEVE MAINLINE AS PER PLAN 4" SCHEDULE 80 PVC NIPPLE 3/4" BRASS STOP VALVE MARLEX STREET ELL TURNED DOWNWARDS SCHEDULE 80 PVC NIPPLE (LENGTH AS REQD) SCHEDULE 80 PVC ELBOW GRAVEL SUMP (SIZE AS REQD) 2
