A twenty-four inch high-density polyethylene root barrier is installed with interlocking strips at junctions and root deflectors facing toward the tree, with the top half-inch positioned above grade. A three-inch gravel backfill of three-quarter-inch size extends two to three inches below the bottom of the root barrier. The adjacent planted area slopes at a minimum of two percent toward the barrier. The assembly terminates against an adjacent curb or paving over a compacted or natural base.

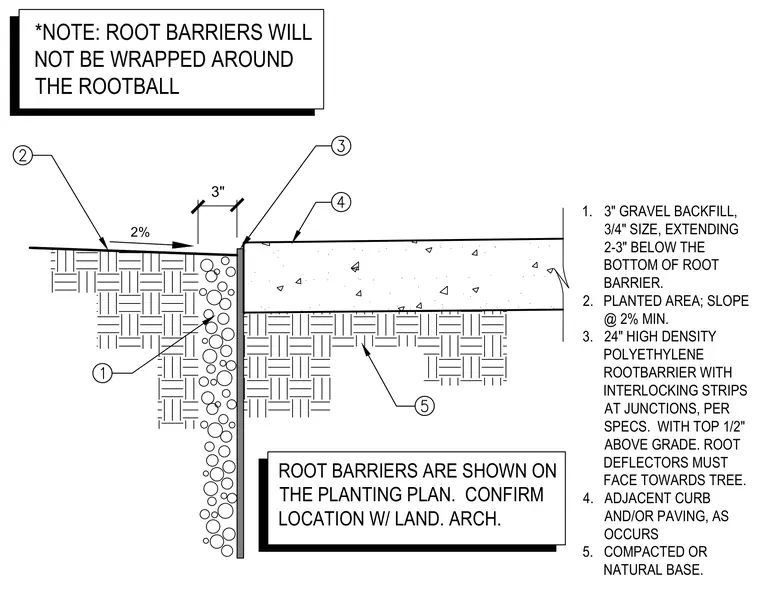

2% *NOTE: ROOT BARRIERS WILL NOT BE WRAPPED AROUND THE ROOTBALL 3" ROOT BARRIERS ARE SHOWN ON THE PLANTING PLAN. CONFIRM LOCATION W/ LAND. ARCH. 1. 3" GRAVEL BACKFILL, 3/4" SIZE, EXTENDING 2-3" BELOW THE BOTTOM OF ROOT BARRIER. 2. PLANTED AREA; SLOPE @ 2% MIN. 3. 24" HIGH DENSITY POLYETHYLENE ROOTBARRIER WITH INTERLOCKING STRIPS AT JUNCTIONS, PER SPECS. WITH TOP 1/2" ABOVE GRADE. ROOT DEFLECTORS MUST FACE TOWARDS TREE. 4. ADJACENT CURB AND/OR PAVING, AS OCCURS 5. COMPACTED OR NATURAL BASE.
