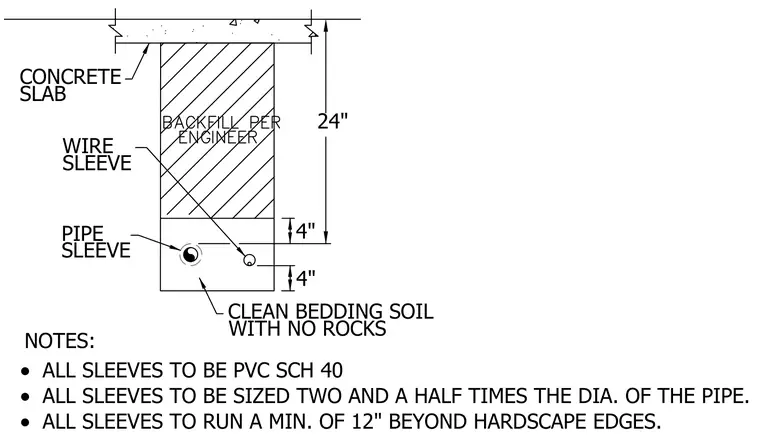

An irrigation sleeve detail showing utility pipe and wire sleeves embedded in clean bedding soil beneath a concrete slab. The detail specifies a twenty-four-inch depth from the top of the concrete slab to the bedding zone, with four inches of clearance above and below the sleeve centerlines. Backfill material sits above the clean bedding soil per engineer specifications. Notes require all sleeves to be Schedule 40 PVC, sized two and a half times the diameter of the pipe, and extended a minimum of twelve inches beyond hardscape edges.
CONCRETE SLAB SLEEVE PIPE SLEEVE WIRE 4" 4" 24" CLEAN BEDDING SOIL WITH NO ROCKS NOTES: · ALL SLEEVES TO BE PVC SCH 40 · ALL SLEEVES TO BE SIZED TWO AND A HALF TIMES THE DIA. OF THE PIPE. · ALL SLEEVES TO RUN A MIN. OF 12" BEYOND HARDSCAPE EDGES.
