An operation indicator is installed with its top positioned two to three inches above finish grade. The indicator connects to the Toro DL2000 dripline, which is buried at a depth specified in the project specifications. One indicator is required per irrigation zone and is located at the flush end of the zone.

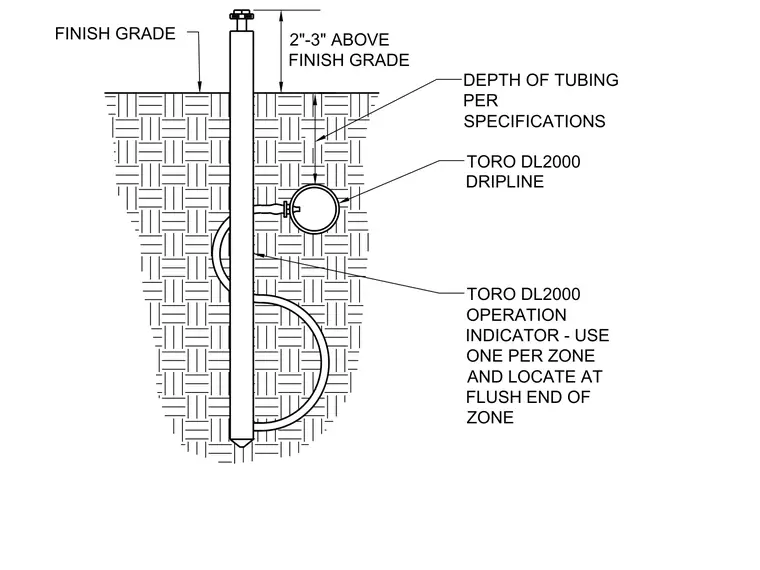

2"-3" ABOVE FINISH GRADE FINISH GRADE DEPTH OF TUBING PER SPECIFICATIONS TORO DL2000 DRIPLINE TORO DL2000 OPERATION INDICATOR - USE ONE PER ZONE AND LOCATE AT FLUSH END OF ZONE
