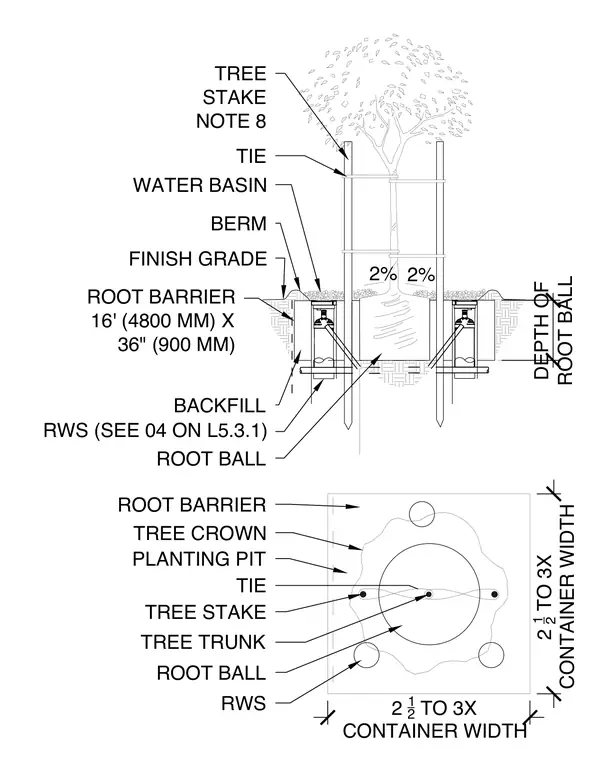

The tree planting pit features a root ball diameter sized two and a half to three times the container width with a depth matching the root ball. A root barrier measuring sixteen feet by thirty-six inches is installed around the pit alongside a root watering system. The tree is secured with two tree stakes and ties attached to the trunk. A water basin and soil berm are formed at the finish grade surrounding the tree.
2% 2% DEPTH OF ROOT BALL ROOT BARRIER TREE CROWN PLANTING PIT TREE STAKE TIE TREE TRUNK ROOT BALL RWS TREE STAKE NOTE 8 TIE WATER BASIN BERM FINISH GRADE ROOT BARRIER 16' (4800 MM) X 36" (900 MM) BACKFILL RWS (SEE 04 ON L5.3.1) ROOT BALL 2 1 2 TO 3X CONTAINER WIDTH 2 1 2 TO 3X CONTAINER WIDTH
