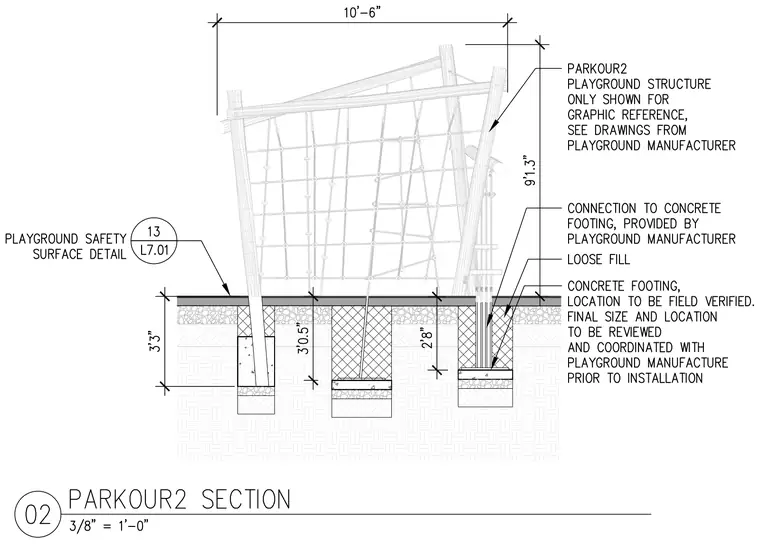

The parkour playground structure is anchored to concrete footings with locations to be field verified and coordinated with the playground manufacturer prior to installation. A loose fill playground safety surface covers the subgrade around the base of the structure. Overall width of the structure is 10 feet 6 inches with a height of 9 feet 1.3 inches, and the concrete footings extend 3 feet 3 inches below grade. All connections and structural components of the playground equipment are provided by the manufacturer.
