An irrigation head on a fixed riser connects to an insulated lateral pipe running through a pea gravel base course above a rigid insulation and waterproofing assembly over an existing structural slab. A three-inch thick foam board secures the spray head within the soil layer. Trenches into the soil at moisture portals are excavated using a V-shaped hoe to accommodate the lateral pipe layout.

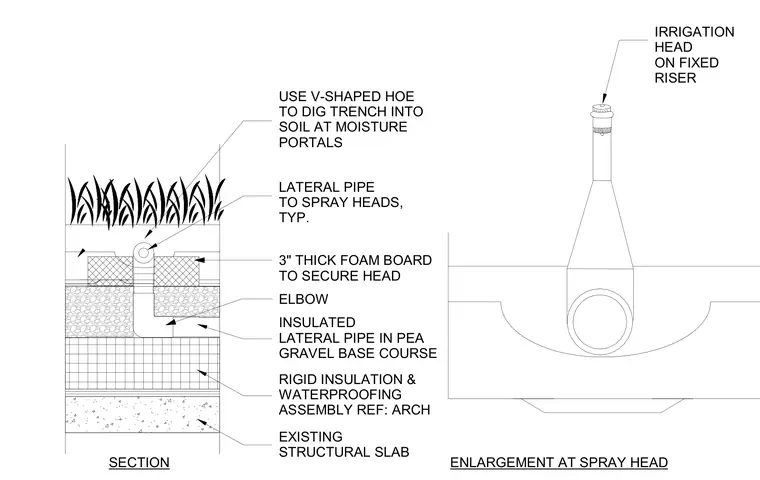

USE V-SHAPED HOE TO DIG TRENCH INTO SOIL AT MOISTURE PORTALS LATERAL PIPE TO SPRAY HEADS, TYP. SECTION ENLARGEMENT AT SPRAY HEAD IRRIGATION HEAD ON FIXED RISER INSULATED LATERAL PIPE IN PEA GRAVEL BASE COURSE RIGID INSULATION & WATERPROOFING ASSEMBLY REF: ARCH ELBOW EXISTING STRUCTURAL SLAB 3" THICK FOAM BOARD TO SECURE HEAD
