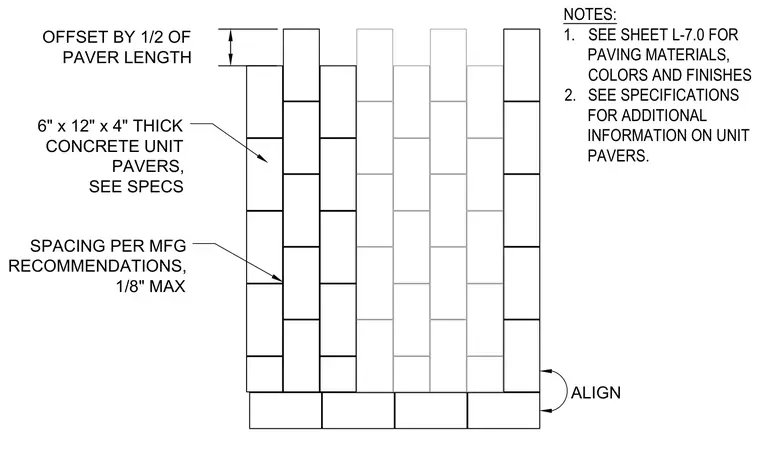

Six by twelve by four inch thick concrete unit pavers are arranged in a running bond pattern with each course offset by one half of the paver length. Joint spacing follows manufacturer recommendations with a one eighth inch maximum. Edges and alignments are maintained per plan specifications.
OFFSET BY 1/2 OF PAVER LENGTH 6" x 12" x 4" THICK CONCRETE UNIT PAVERS, SEE SPECS SPACING PER MFG RECOMMENDATIONS, 1/8" MAX NOTES: 1. SEE SHEET L-7.0 FOR PAVING MATERIALS, COLORS AND FINISHES 2. SEE SPECIFICATIONS FOR ADDITIONAL INFORMATION ON UNIT PAVERS. ALIGN
