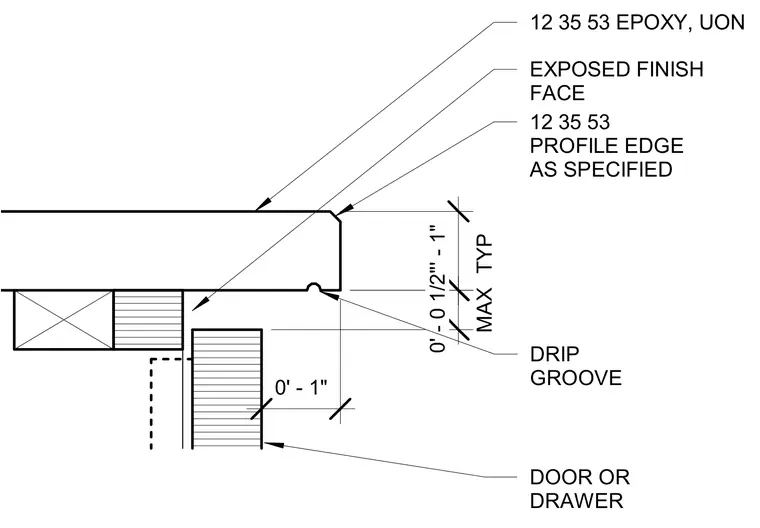

The countertop features an exposed finish face with an epoxy coating specified unless otherwise noted and a shaped profile edge. A drip groove is positioned on the underside near the edge. A door or drawer is located below with specified vertical clearances.
EXPOSED FINISH FACE DOOR OR DRAWER 0' - 1" 0' - 0 1/2" 12 35 53 PROFILE EDGE AS SPECIFIED DRIP GROOVE MAX TYP 0' - 1" 12 35 53 EPOXY, UON
