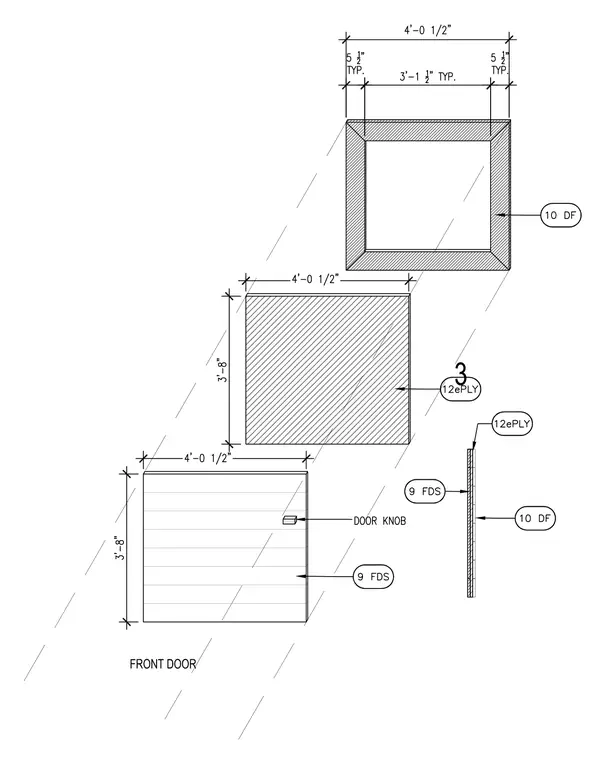

Front door assembly measuring 4'-0 1/2" wide by 3'-8" high featuring exterior door framing, plywood panels, and a door knob. The frame consists of typical 5 1/2" members with mitered corners. The door assembly incorporates specified wood or material components indicated by callouts 9 FDS, 10 DF, and 12ePLY.
