A custom concrete fire pit by Concreteworks sits atop a concrete footing and structural concrete slab assembly. The fire feature features a steel tray filled with crushed lava rock over an HPC burner, with controls and an emergency shutoff located behind a moveable weathering steel plate. Brick paving and associated layers are detailed adjacent to the fire feature base, referencing structural and architectural drawings for underlying layers and slab specifications. The custom concrete fire pit measures one foot five inches in height with an eight-inch central burner trough and eleven-inch sides.

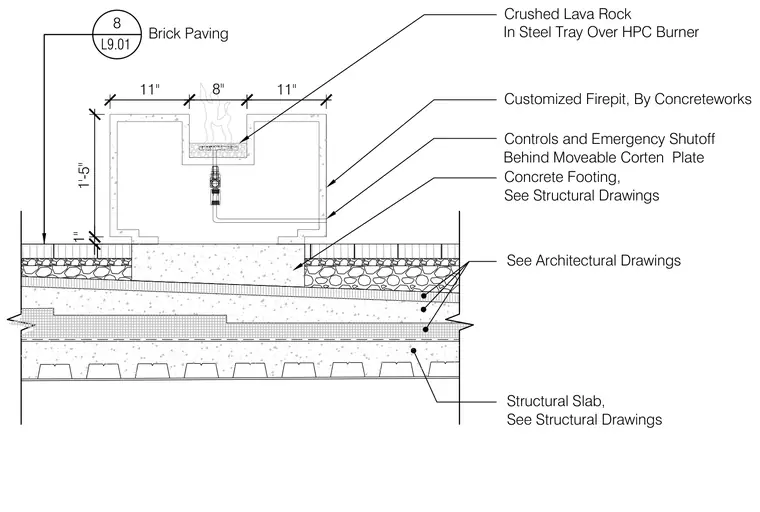

Crushed Lava Rock In Steel Tray Over HPC Burner Controls and Emergency Shutoff Behind Moveable Corten Plate 1" Customized Firepit, By Concreteworks Structural Slab, See Structural Drawings Concrete Footing, See Structural Drawings See Architectural Drawings 11" 1'-5" 8" 11" 8 L9.01 Brick Paving
