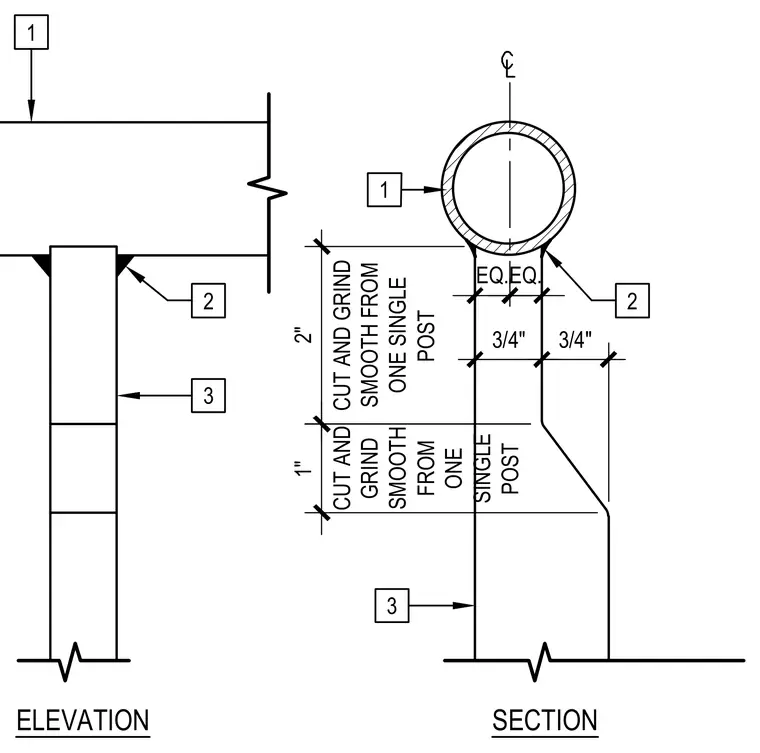

A tubular post connects to an overhead horizontal member with fillet welds on both sides. The top of the vertical post is notched and shaped to match the outer contour of the round member above it. Dimensions indicate a two-inch vertical cutout segment and a one-inch transition segment cut and ground smooth from a single post.
1 2 3 3 SECTION ELEVATION 3/4" 3/4" 1 EQ. EQ. 2 2" CUT AND GRIND SMOOTH FROM ONE SINGLE POST 1" CUT AND GRIND SMOOTH FROM ONE SINGLE POST
