Structural · L-A7RFX

Typ. Wall Footing

Materials

Cold-formed Steel Concrete Metal (misc.)Reinforced Concrete Timber / Wood

Elements

Arches Drainage Floors / Slabs Foundations / Footings Reinforcing Roof / Floor Openings Site / Paving Walls Waterproofing / Flashing

Connections

Rebar Splice / Development

About this detail

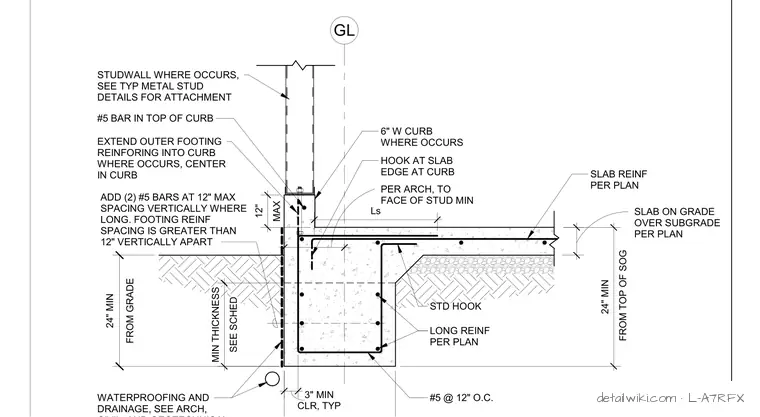

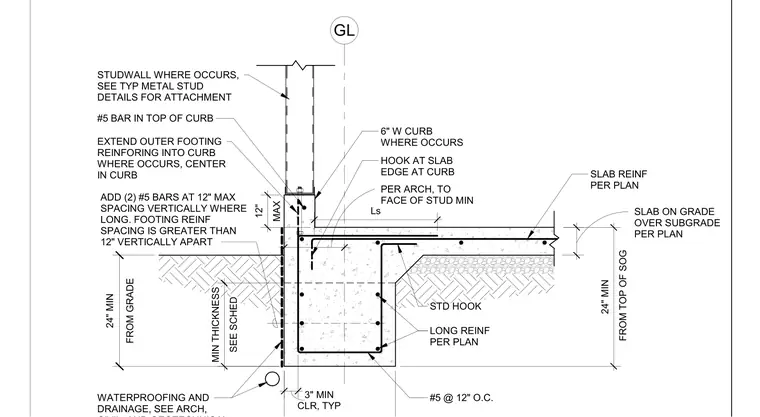

A concrete wall footing supports a slab on grade and an optional stud wall above a raised curb. The continuous footing features longitudinal reinforcement sized per schedule with a minimum depth of twenty-four inches from the top of the slab on grade, maintaining three inches of minimum clear cover. Outer footing reinforcing extends up into the six-inch wide curb, incorporating number five bars spaced at twelve inches on center and standard hooks at the slab edge. Where longitudinal footing reinforcement spacing exceeds twelve inches vertically, two additional number five bars are added at a maximum twelve-inch vertical spacing. The slab on grade rests over prepared subgrade with reinforcement per plan, tying into the footing edge. A stud wall bears on the curb above, attached per typical metal stud details, with waterproofing and drainage provided per architectural drawings.
