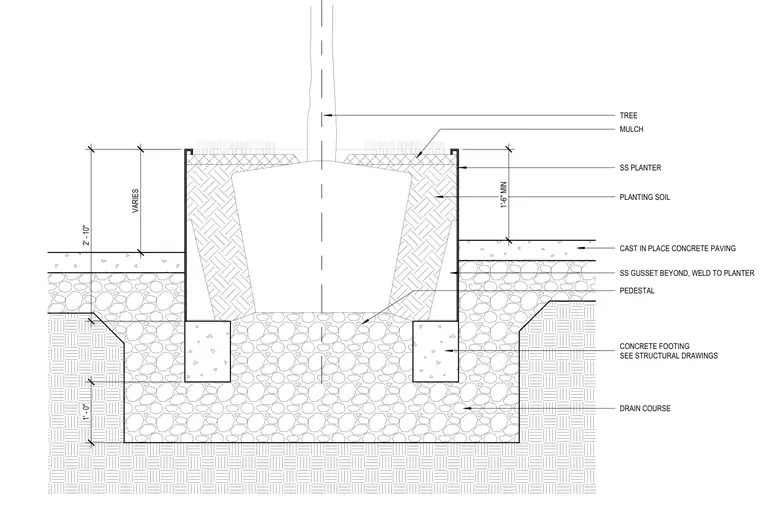

This cross section shows a stainless steel planter holding a tree with mulch and planting soil, supported by a concrete footing sized per structural drawings over a drain course. The planter features stainless steel gussets welded to the planter body beyond. The assembly is surrounded by cast-in-place concrete paving resting on a pedestal and drain course. The planter depth is variable with a one foot six inch minimum dimension.
SS PLANTER PLANTING SOIL CAST IN PLACE CONCRETE PAVING DRAIN COURSE SS GUSSET BEYOND, WELD TO PLANTER MULCH TREE PEDESTAL 2' - 10" 1' - 0" CONCRETE FOOTING SEE STRUCTURAL DRAWINGS VARIES 1'-6" MIN
