Landscape · L-9YN65

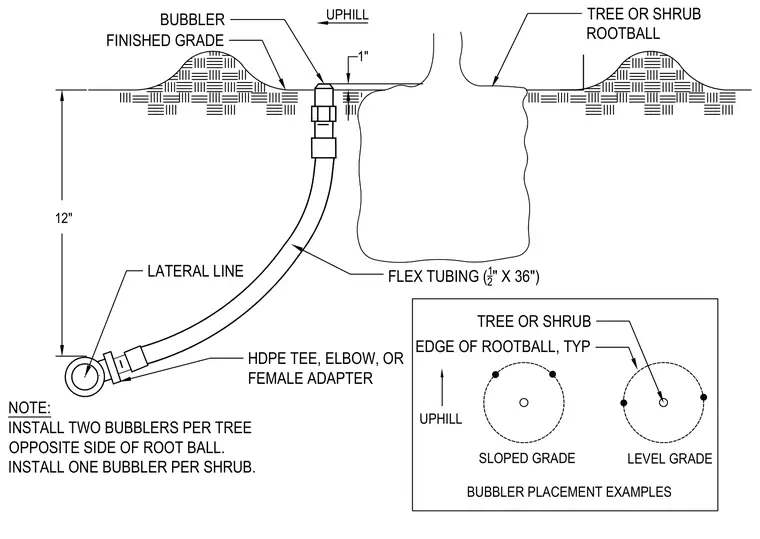

Tree and Shrub Bubbler Irrigation Connection Detail

About this detail

Irrigation bubbler heads are positioned at the finished grade near the tree or shrub rootball using one-half-inch by thirty-six-inch flexible tubing. The flex tubing connects to the lateral line via high-density polyethylene tees, elbows, or female adapters. Two bubblers are installed per tree on opposite sides of the root ball, while one bubbler is used per shrub, with placement adjusted for sloped or level grade conditions.
