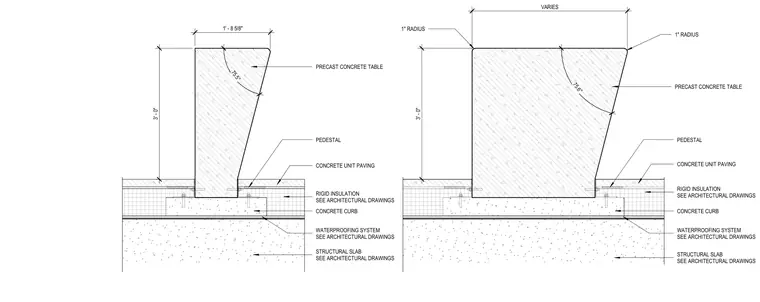

A precast concrete table and pedestal mount on a terrace rooftop or plaza deck. The precast concrete table stands three feet high with raked angles and one-inch edge radii, supported by a pedestal anchored to a concrete curb. The curb rests above a waterproofing system and a structural concrete slab shown per architectural drawings. Concrete unit paving and rigid insulation surround the pedestal base at the finished deck level.
3' - 0" 1" RADIUS 1" RADIUS VARIES PRECAST CONCRETE TABLE PEDESTAL CONCRETE CURB STRUCTURAL SLAB SEE ARCHITECTURAL DRAWINGS WATERPROOFING SYSTEM SEE ARCHITECTURAL DRAWINGS CONCRETE UNIT PAVING RIGID INSULATION SEE ARCHITECTURAL DRAWINGS 3' - 0" 1' - 8 5/8" 75.5° 75.6° PRECAST CONCRETE TABLE PEDESTAL CONCRETE UNIT PAVING RIGID INSULATION SEE ARCHITECTURAL DRAWINGS CONCRETE CURB WATERPROOFING SYSTEM SEE ARCHITECTURAL DRAWINGS STRUCTURAL SLAB SEE ARCHITECTURAL DRAWINGS
