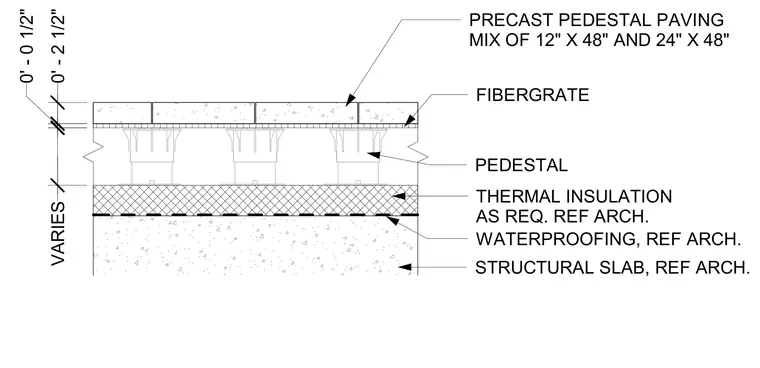

Precast pedestal pavers are supported on adjustable pedestals over a fiberglass grating layer above thermal insulation and waterproofing on a structural slab. The assembly incorporates a mix of 12-inch by 48-inch and 24-inch by 48-inch precast units. Thermal insulation and waterproofing are provided per architectural specifications with variable cavity depths.
WATERPROOFING, REF ARCH. STRUCTURAL SLAB, REF ARCH. PRECAST PEDESTAL PAVING MIX OF 12" X 48" AND 24" X 48" THERMAL INSULATION AS REQ. REF ARCH. VARIES PEDESTAL FIBERGRATE 0' - 0 1/2" 0' - 2 1/2"
