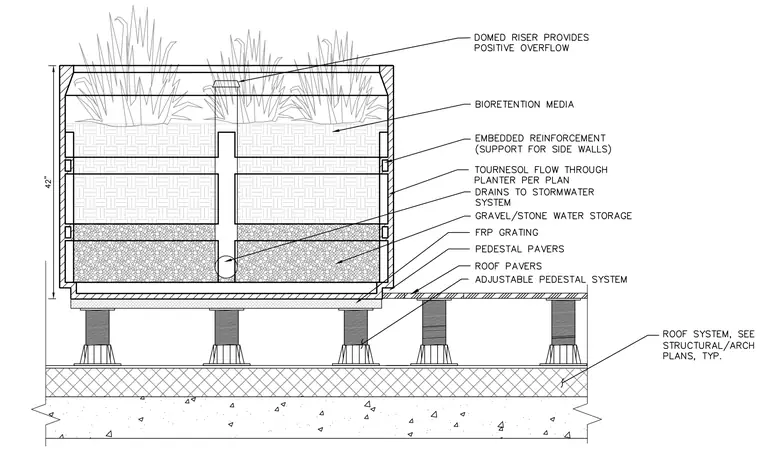

A Tournesol flow-through planter rests on adjustable pedestal systems and roof pavers above the structural roof assembly. The planter unit stands forty-two inches high and contains bioretention media, gravel and stone water storage layers, embedded reinforcement for side wall support, and fiber-reinforced polymer grating. A domed riser provides positive overflow, and the internal drainage routes to a stormwater system.
