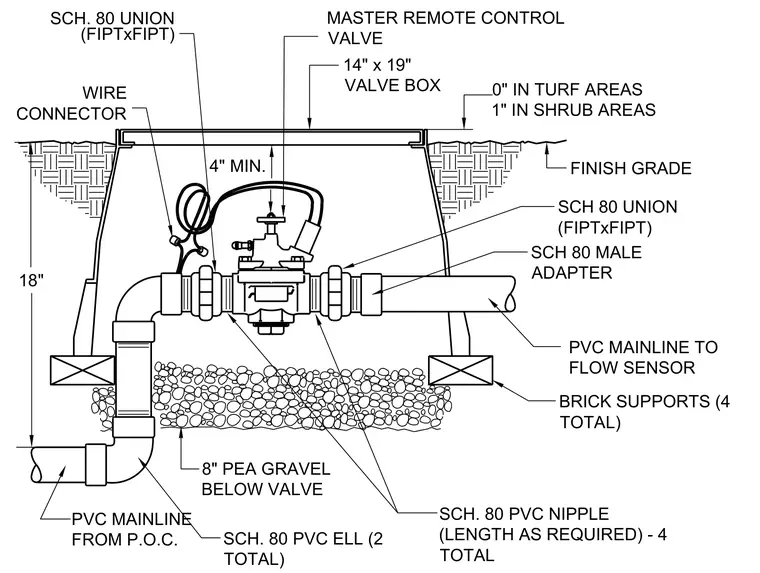

A master remote control valve is housed within a 14-inch by 19-inch valve box set flush with the finish grade in turf areas or raised one inch in shrub areas. The assembly connects to a PVC mainline from the point of connection using schedule 80 PVC elbows, a vertical schedule 80 PVC nipple, and schedule 80 unions. The valve is supported on four brick supports positioned above an 8-inch layer of pea gravel for drainage. A schedule 80 male adapter connects the outlet side of the valve to the PVC mainline leading to the flow sensor. Electrical wire connectors tie into the valve control wires.
SCH. 80 UNION (FIPTxFIPT) WIRE CONNECTOR MASTER REMOTE CONTROL VALVE 14" x 19" VALVE BOX 0" IN TURF AREAS 1" IN SHRUB AREAS FINISH GRADE SCH 80 UNION (FIPTxFIPT) PVC MAINLINE TO FLOW SENSOR BRICK SUPPORTS (4 TOTAL) SCH. 80 PVC NIPPLE (LENGTH AS REQUIRED) - 4 TOTAL 8" PEA GRAVEL BELOW VALVE SCH. 80 PVC ELL (2 TOTAL) PVC MAINLINE FROM P.O.C. 4" MIN. SCH 80 MALE ADAPTER 18"
