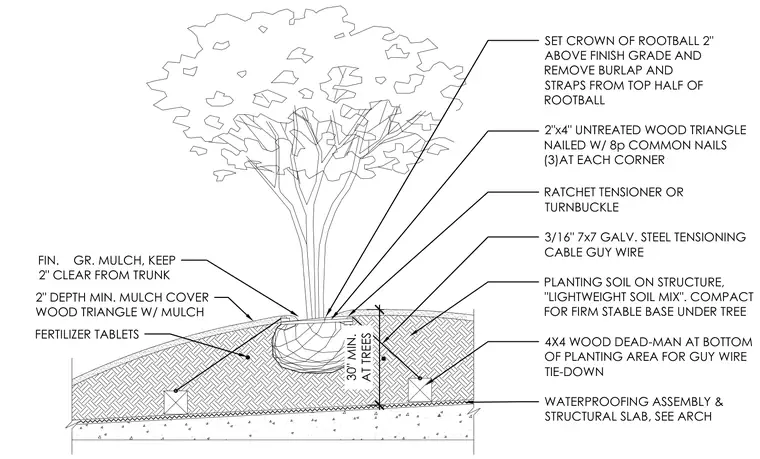

A tree planting assembly is positioned directly over a structural slab and waterproofing assembly. The rootball is set with its crown two inches above the finish grade, with burlap and straps removed from the top half and fertilizer tablets embedded in the root zone. A lightweight soil mix is compacted to provide a firm base over the structural slab, maintaining a thirty-inch minimum depth at trees. A four-by-four untreated wood deadman is embedded at the bottom of the planting area to serve as a guy wire tie-down. Three-sixteenth-inch galvanized steel tensioning cables with ratchet tensioners or turnbuckles secure the tree to the deadman, stabilized by two-by-four untreated wood triangles nailed with three eight-penny common nails at each corner. Finish grade mulch is applied at a two-inch minimum depth and kept two inches clear from the trunk.
FERTILIZER TABLETS SET CROWN OF ROOTBALL 2" ABOVE FINISH GRADE AND REMOVE BURLAP AND STRAPS FROM TOP HALF OF ROOTBALL FIN. GR. MULCH, KEEP 2" CLEAR FROM TRUNK 2" DEPTH MIN. MULCH COVER WOOD TRIANGLE W/ MULCH 2"x4" UNTREATED WOOD TRIANGLE NAILED W/ 8p COMMON NAILS (3)AT EACH CORNER RATCHET TENSIONER OR TURNBUCKLE 3/16" 7x7 GALV. STEEL TENSIONING CABLE GUY WIRE PLANTING SOIL ON STRUCTURE, "LIGHTWEIGHT SOIL MIX". COMPACT FOR FIRM STABLE BASE UNDER TREE 4X4 WOOD DEAD-MAN AT BOTTOM OF PLANTING AREA FOR GUY WIRE TIE-DOWN WATERPROOFING ASSEMBLY & STRUCTURAL SLAB, SEE ARCH 30" MIN. AT TREES
