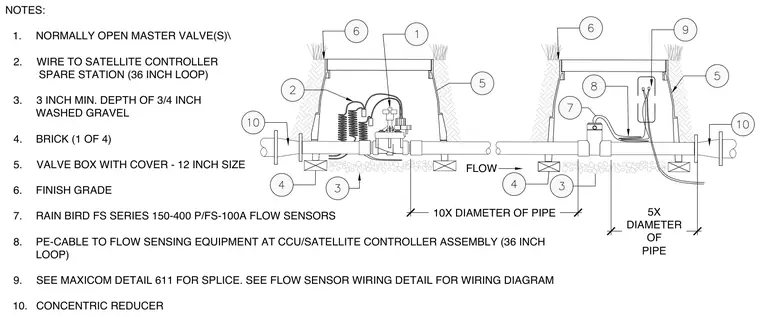

A twelve-inch valve box with cover is set at finish grade over a three-inch minimum depth of three-quarter-inch washed gravel bed supported by bricks at the corners. The assembly houses a normally open master valve with wired connections to a satellite controller spare station featuring a thirty-six-inch wire loop, concentric reducers, and a Rain Bird FS series flow sensor with polyethylene cable running to flow sensing equipment. Straight pipe runs maintain specific clearances requiring ten times the pipe diameter upstream and five times the pipe diameter downstream of the flow sensor.
FLOW 10X DIAMETER OF PIPE 5X DIAMETER OF PIPE NOTES: 1. NORMALLY OPEN MASTER VALVE(S)\ 2. WIRE TO SATELLITE CONTROLLER SPARE STATION (36 INCH LOOP) 3. 3 INCH MIN. DEPTH OF 3/4 INCH WASHED GRAVEL 4. BRICK (1 OF 4) 5. VALVE BOX WITH COVER - 12 INCH SIZE 6. FINISH GRADE 7. RAIN BIRD FS SERIES 150-400 P/FS-100A FLOW SENSORS 8. PE-CABLE TO FLOW SENSING EQUIPMENT AT CCU/SATELLITE CONTROLLER ASSEMBLY (36 INCH LOOP) 9. SEE MAXICOM DETAIL 611 FOR SPLICE. SEE FLOW SENSOR WIRING DETAIL FOR WIRING DIAGRAM 10. CONCENTRIC REDUCER
