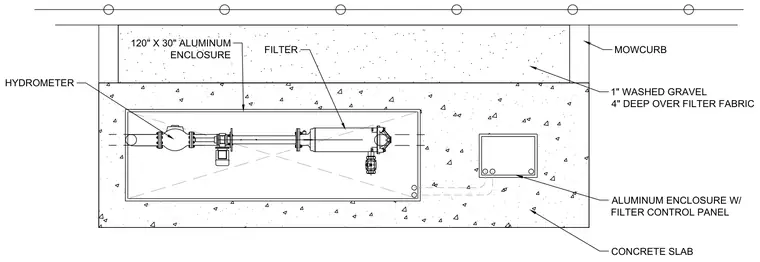

A 120-inch by 30-inch aluminum enclosure houses a filter and hydrometer assembly positioned over a concrete slab. Four inches of 1-inch washed gravel is placed over a layer of filter fabric adjacent to a mowcurb. A separate aluminum enclosure containing a filter control panel connects via underground conduits.
FILTER 120" X 30" ALUMINUM ENCLOSURE HYDROMETER MOWCURB 1" WASHED GRAVEL 4" DEEP OVER FILTER FABRIC CONCRETE SLAB ALUMINUM ENCLOSURE W/ FILTER CONTROL PANEL
