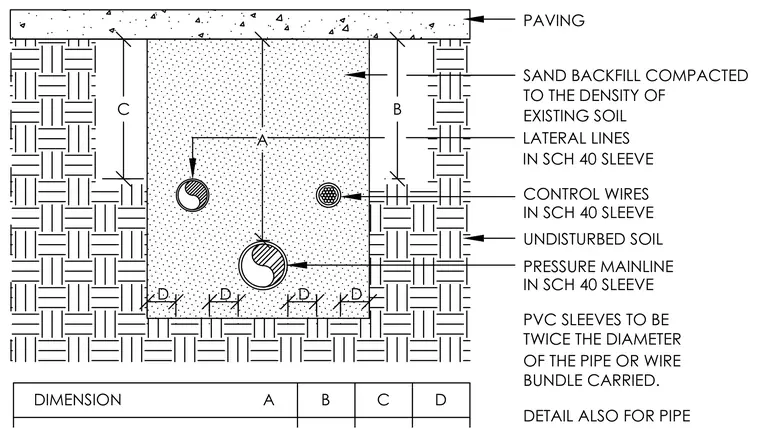

An underground utility installation featuring PVC sleeves placed in a trench excavated through undisturbed soil and topped with paving. A pressure mainline, lateral lines, and control wires are each housed within Schedule 40 PVC sleeves, which are sized to be twice the diameter of the carried pipe or wire bundle. The trench is filled with sand backfill compacted to the density of the existing soil. Spacing dimensions are designated throughout the trench cross-section.
D D DIMENSION D D A B C D C A B IN SCH 40 SLEEVE DETAIL ALSO FOR PIPE OF THE PIPE OR WIRE PVC SLEEVES TO BE TWICE THE DIAMETER BUNDLE CARRIED. PRESSURE MAINLINE IN SCH 40 SLEEVE UNDISTURBED SOIL CONTROL WIRES IN SCH 40 SLEEVE SAND BACKFILL COMPACTED TO THE DENSITY OF LATERAL LINES EXISTING SOIL PAVING
