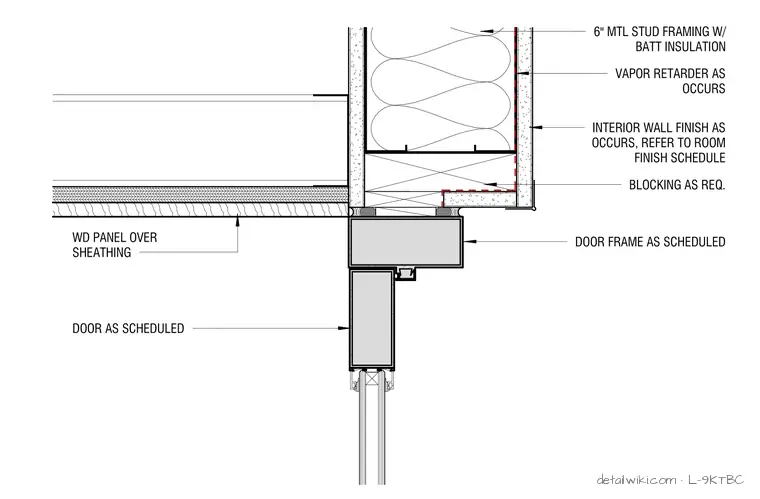

An interior wood panel over sheathing abuts a door frame as scheduled. The framing consists of six-inch metal stud framing with batt insulation, finished with an interior wall finish as occurs and sized per the room finish schedule. Required blocking is installed at the head of the opening. A vapor retarder is included as occurs behind the interior finish.
WD PANEL OVER SHEATHING 6" MTL STUD FRAMING W/ BATT INSULATION INTERIOR WALL FINISH AS OCCURS, REFER TO ROOM FINISH SCHEDULE BLOCKING AS REQ. VAPOR RETARDER AS OCCURS DOOR AS SCHEDULED DOOR FRAME AS SCHEDULED
