A heavy-duty extruded anodized aluminum track is suspended from the overhead suspended ceiling using a ceiling clip with a threaded stud and nut. A one-piece nylon roller wheel assembly rides inside the track, supporting a twelve-gauge steel carrier hook with a corrosion-resistant finish spaced at four inches on center. The blackout curtain hangs from the steel carrier hooks beneath the track assembly.

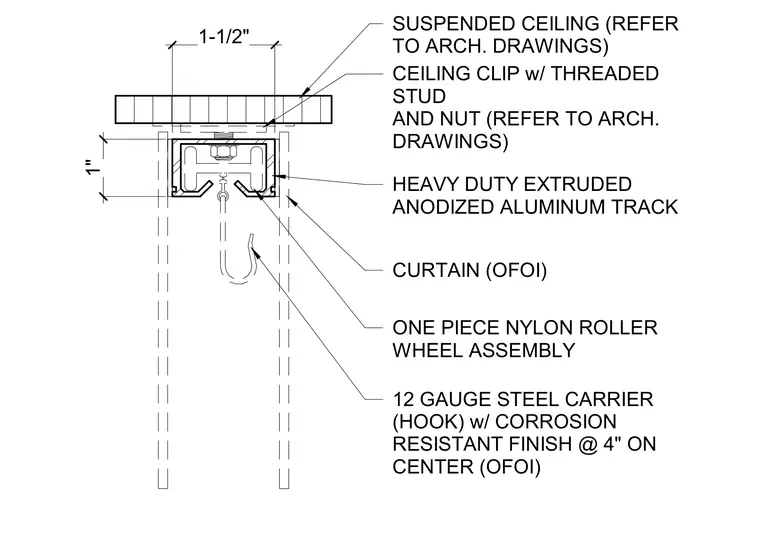

1-1/2" 1" ONE PIECE NYLON ROLLER WHEEL ASSEMBLY 12 GAUGE STEEL CARRIER (HOOK) w/ CORROSION RESISTANT FINISH @ 4" ON CENTER (OFOI) CURTAIN (OFOI) CEILING CLIP w/ THREADED STUD AND NUT (REFER TO ARCH. DRAWINGS) SUSPENDED CEILING (REFER TO ARCH. DRAWINGS) HEAVY DUTY EXTRUDED ANODIZED ALUMINUM TRACK
