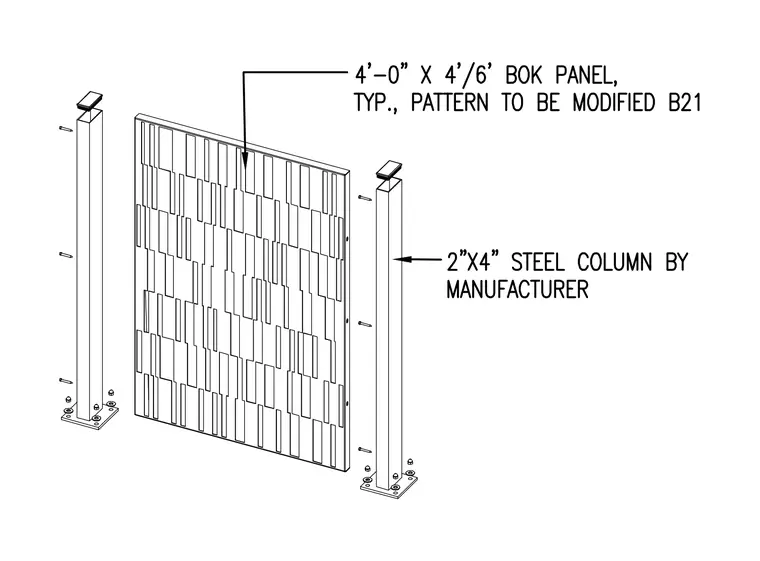

A four-foot by four-foot six-inch typical BOK panel is secured between two manufacturer-supplied two-inch by four-inch steel columns with a pattern to be modified per B21. Each column features a welded base plate anchored with bolts, nuts, and washers. Fasteners connect the panel sides to the internal faces of the steel support columns.
