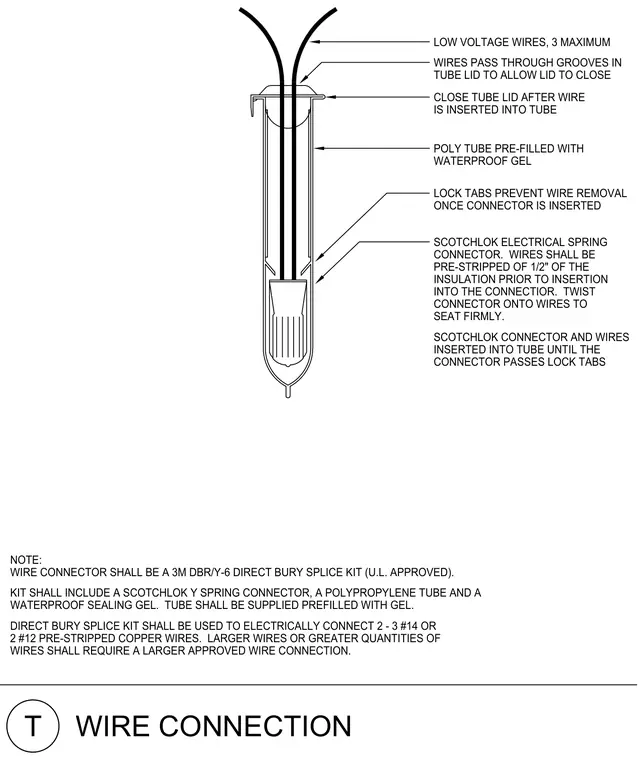

A direct bury electrical splice kit for low voltage wires uses a 3M DBR/Y-6 or equivalent U.L. approved assembly. The kit consists of a polypropylene tube prefilled with waterproof sealing gel and an internal Scotchlok Y spring connector. Wires are pre-stripped of one-half inch of insulation, twisted firmly into the spring connector, and inserted into the tube until the connector passes the internal lock tabs which prevent wire removal. The tube lid is then closed with the wires passing through dedicated lid grooves. The assembly accommodates a maximum of three low voltage wires, specifically two to three number fourteen or two number twelve pre-stripped copper wires.
KIT SHALL INCLUDE A SCOTCHLOK Y SPRING CONNECTOR, A POLYPROPYLENE TUBE AND A WATERPROOF SEALING GEL. TUBE SHALL BE SUPPLIED PREFILLED WITH GEL. WIRE CONNECTOR SHALL BE A 3M DBR/Y-6 DIRECT BURY SPLICE KIT (U.L. APPROVED). NOTE: INSERTED INTO TUBE UNTIL THE SCOTCHLOK CONNECTOR AND WIRES CONNECTOR PASSES LOCK TABS WATERPROOF GEL POLY TUBE PRE-FILLED WITH ONCE CONNECTOR IS INSERTED LOCK TABS PREVENT WIRE REMOVAL SCOTCHLOK ELECTRICAL SPRING CONNECTOR. WIRES SHALL BE PRE-STRIPPED OF 1/2" OF THE INSULATION PRIOR TO INSERTION CONNECTOR ONTO WIRES TO INTO THE CONNECTIOR. TWIST SEAT FIRMLY. IS INSERTED INTO TUBE WIRES PASS THROUGH GROOVES IN TUBE LID TO ALLOW LID TO CLOSE CLOSE TUBE LID AFTER WIRE LOW VOLTAGE WIRES, 3 MAXIMUM DIRECT BURY SPLICE KIT SHALL BE USED TO ELECTRICALLY CONNECT 2 - 3 #14 OR 2 #12 PRE-STRIPPED COPPER WIRES. LARGER WIRES OR GREATER QUANTITIES OF WIRES SHALL REQUIRE A LARGER APPROVED WIRE CONNECTION. T WIRE CONNECTION
