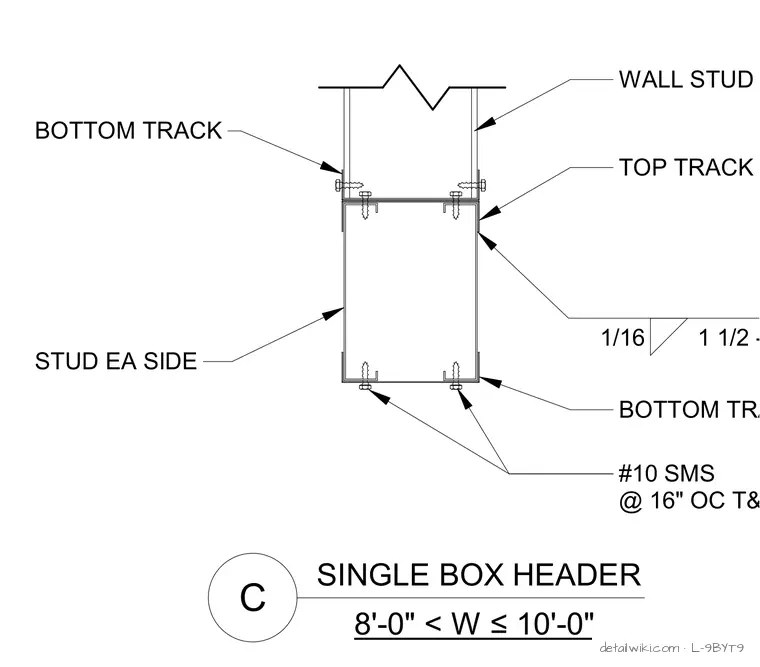

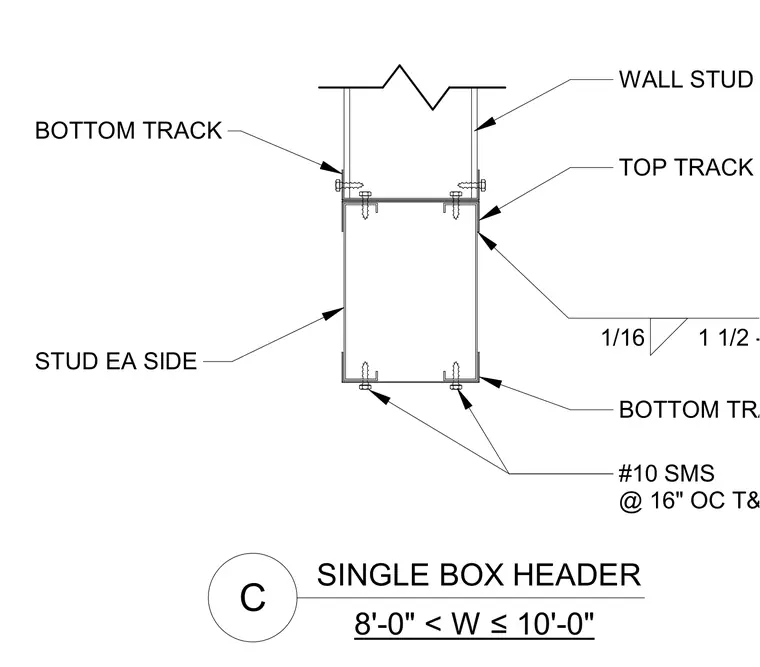

This cold-formed steel single box header assembly spans openings from eight to ten feet wide. A top track nests inside a bottom track to form the rectangular header member, fastened with number ten sheet metal screws at sixteen inches on center top and bottom. Wall studs bear on the assembly with a bottom track placed over the header and studs each side. Number ten sheet metal screws connect the framing members together.
STUD EA SIDE #10 SMS @ 16" OC T&B BOTTOM TRACK TOP TRACK BOTTOM TRACK 1/16 1 1/2 - 16 8'-0" < W ≤10'-0" WALL STUD C SINGLE BOX HEADER
