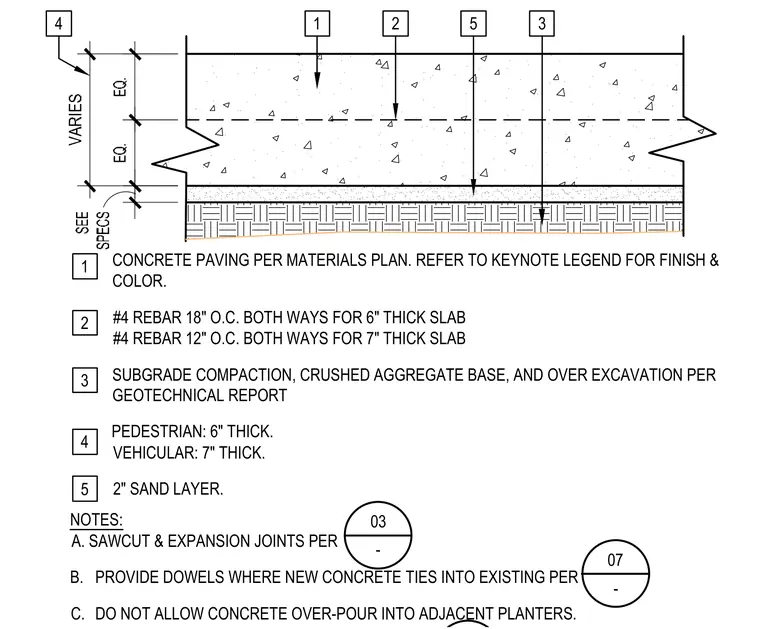

A reinforced concrete paving assembly rests on a sand layer and crushed aggregate base. Pedestrian paving requires a six-inch-thick slab reinforced with number four rebar at eighteen inches on center each way, while vehicular paving requires a seven-inch-thick slab reinforced with number four rebar at twelve inches on center each way. Subgrade compaction, crushed aggregate base, and over excavation are provided per the geotechnical report. A two-inch sand layer is positioned directly beneath the concrete slab. Sawcut and expansion joints are installed per specifications, and dowels are provided where new concrete ties into existing slabs.
EQ. EQ. VARIES 1 2 3 4 1 2 3 4 03 - 5 5 07 - SEE SPECS CONCRETE PAVING PER MATERIALS PLAN. REFER TO KEYNOTE LEGEND FOR FINISH & COLOR. #4 REBAR 18" O.C. BOTH WAYS FOR 6" THICK SLAB #4 REBAR 12" O.C. BOTH WAYS FOR 7" THICK SLAB SUBGRADE COMPACTION, CRUSHED AGGREGATE BASE, AND OVER EXCAVATION PER GEOTECHNICAL REPORT PEDESTRIAN: 6" THICK. VEHICULAR: 7" THICK. 2" SAND LAYER. NOTES: A. SAWCUT & EXPANSION JOINTS PER B. PROVIDE DOWELS WHERE NEW CONCRETE TIES INTO EXISTING PER C. DO NOT ALLOW CONCRETE OVER-POUR INTO ADJACENT PLANTERS.
