L-9ARAE — 1-Hr/2-Hr Firestopping @ Pipe Penetration Sm

Landscape · L-9ARAE

1-Hr/2-Hr Firestopping @ Pipe Penetration Sm

Units: imperial
Sheet: LO-A9.6.2
Discipline: Landscape

Materials

Elements

Floors / Slabs Insulation Partitions Roof / Floor Openings Walls

Text on the drawing

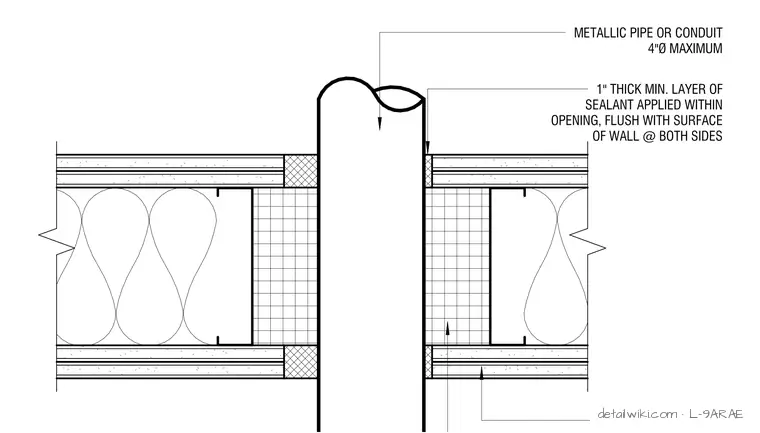

PARTITION PER PLAN METALLIC PIPE OR CONDUIT 4"Ø MAXIMUM 1" THICK MIN. LAYER OF SEALANT APPLIED WITHIN OPENING, FLUSH WITH SURFACE OF WALL @ BOTH SIDES
