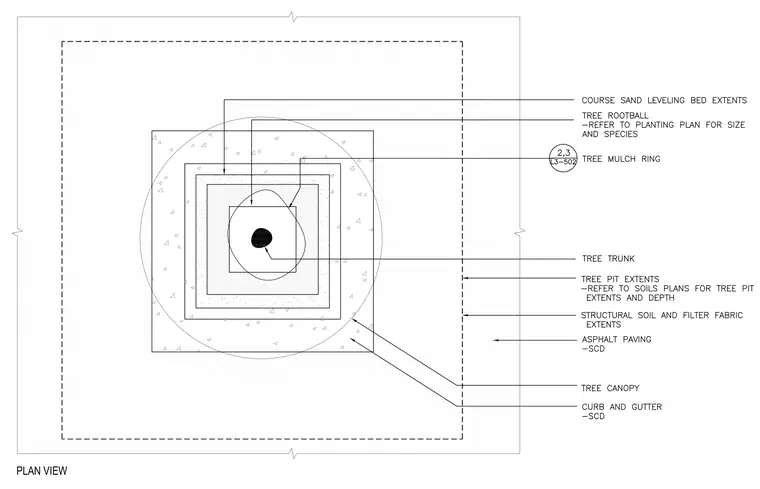

A tree rootball sits centrally within a coarse sand leveling bed extents, surrounded by a tree mulch ring. Structural soil and filter fabric extents define the underground root zone beneath the surrounding asphalt paving. A curb and gutter bounds the installation, while tree pit extents and tree canopy limits are marked. The tree trunk and overall species size are referenced to the planting and soils plans.
