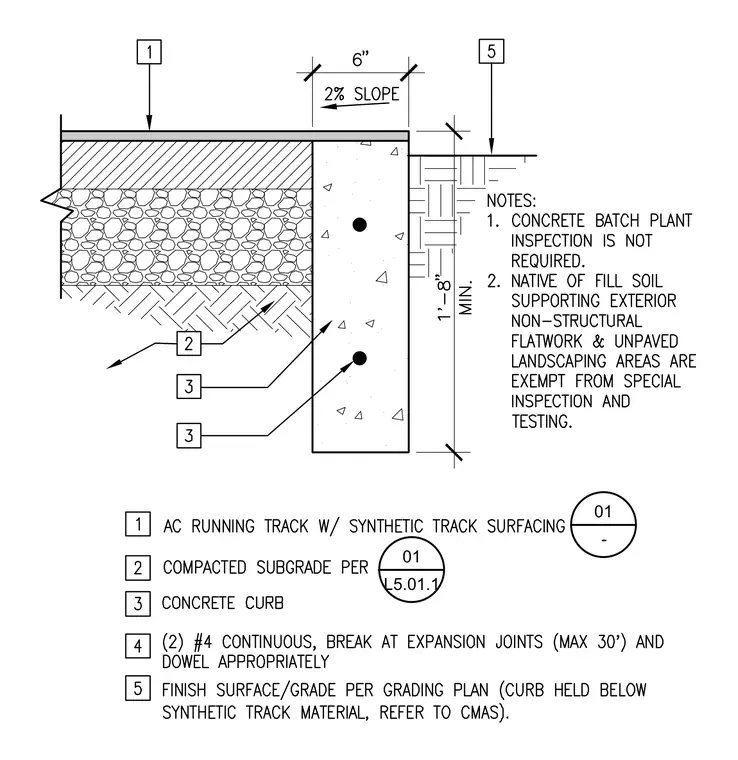

An asphalt concrete running track with synthetic track surfacing bears on compacted subgrade. A cast-in-place concrete curb retains the track edge and includes two continuous number four reinforcing bars, breaking at expansion joints at a maximum of thirty feet with appropriate dowels. The finish grade is held below the synthetic track material per the grading plan.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
