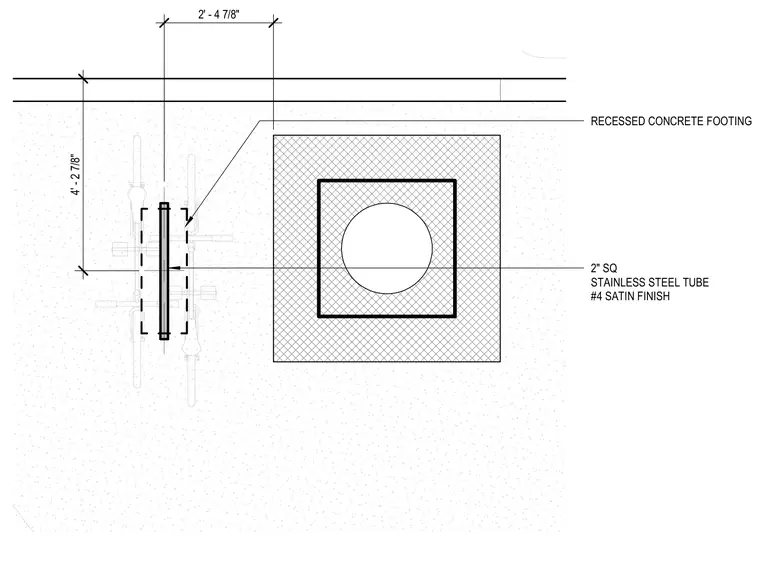

A two-inch square stainless steel tube with a number four satin finish serves as the bike rack anchored into a recessed concrete footing. Dimensions of two feet four and seven-eighths inches by four feet two and seven-eighths inches locate the mounting position relative to adjacent construction.
2' - 4 7/8" 4' - 2 7/8" RECESSED CONCRETE FOOTING 2" SQ STAINLESS STEEL TUBE #4 SATIN FINISH
