An irrigation bubbler and finish grade cap connect to a vertical Schedule 80 nipple extending downward into a vertical 4-inch perforated drain pipe. The vertical pipe extends to the bottom of the root ball and is backfilled with clean washed pea gravel up to the top of the pipe. A double swing joint composed of two Marlex street elbows connects the upper nipple to a lower Schedule 80 nipple. This lower nipple ties into a Marlex street ell, which connects to the lateral line via a PVC tee or elbow.

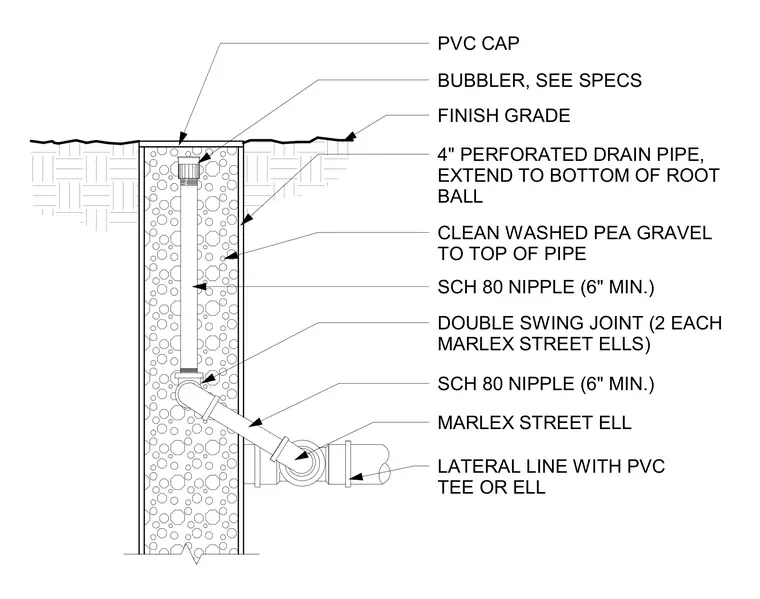

PVC CAP BUBBLER, SEE SPECS FINISH GRADE 4" PERFORATED DRAIN PIPE, EXTEND TO BOTTOM OF ROOT BALL CLEAN WASHED PEA GRAVEL TO TOP OF PIPE LATERAL LINE WITH PVC TEE OR ELL MARLEX STREET ELL SCH 80 NIPPLE (6" MIN.) DOUBLE SWING JOINT (2 EACH MARLEX STREET ELLS) SCH 80 NIPPLE (6" MIN.)
