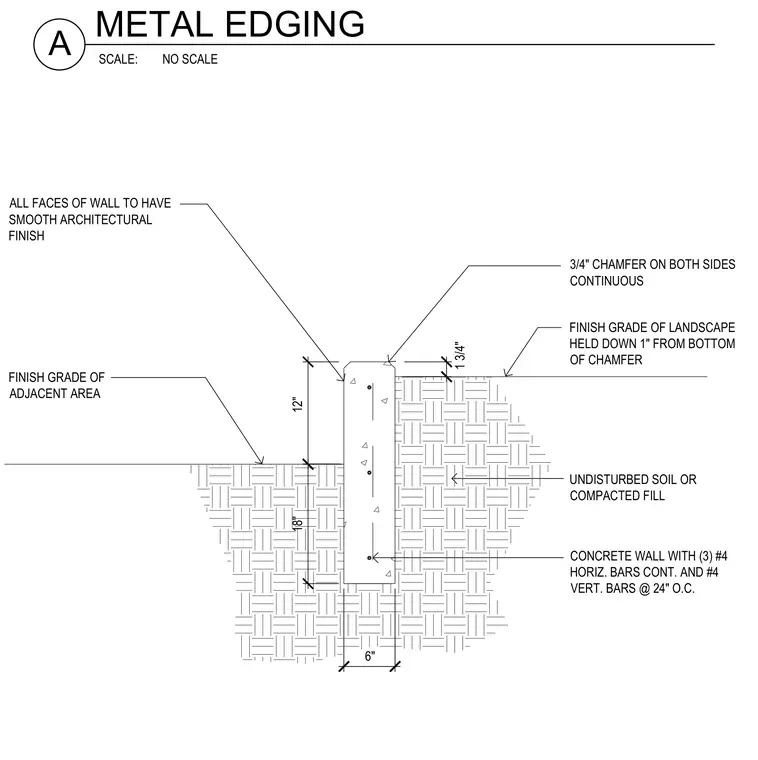

A concrete curb wall is set into undisturbed soil or compacted fill with a width of six inches and a total height of thirty inches. The wall is reinforced with three continuous number four horizontal bars and number four vertical bars spaced at twenty-four inches on center. A continuous three-quarter-inch chamfer is featured on both top sides, with the finish grade of the landscape held down one inch from the bottom of the chamfer. All faces of the wall receive a smooth architectural finish.
SCALE: METAL EDGING NO SCALE A 1 3/4" 6" FINISH GRADE OF ADJACENT AREA CONCRETE WALL WITH (3) #4 HORIZ. BARS CONT. AND #4 VERT. BARS @ 24" O.C. FINISH GRADE OF LANDSCAPE HELD DOWN 1" FROM BOTTOM OF CHAMFER UNDISTURBED SOIL OR COMPACTED FILL ALL FACES OF WALL TO HAVE SMOOTH ARCHITECTURAL FINISH 3/4" CHAMFER ON BOTH SIDES CONTINUOUS 18" 12"
