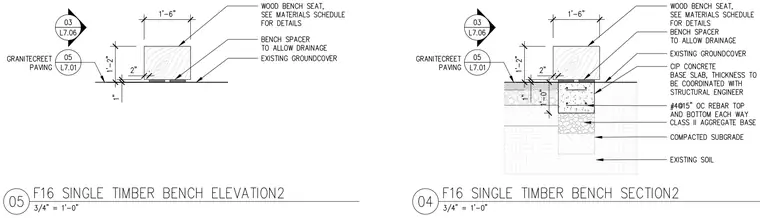

The wood bench seat is supported on bench spacers to allow drainage above existing groundcover, with an overall seat height of one foot two inches and a width of one foot six inches. Adjacent paving is granitecreet paving. A cast-in-place concrete base slab with number four rebar at fifteen inches on center top and bottom each way bears on a class two aggregate base over compacted subgrade and existing soil.
