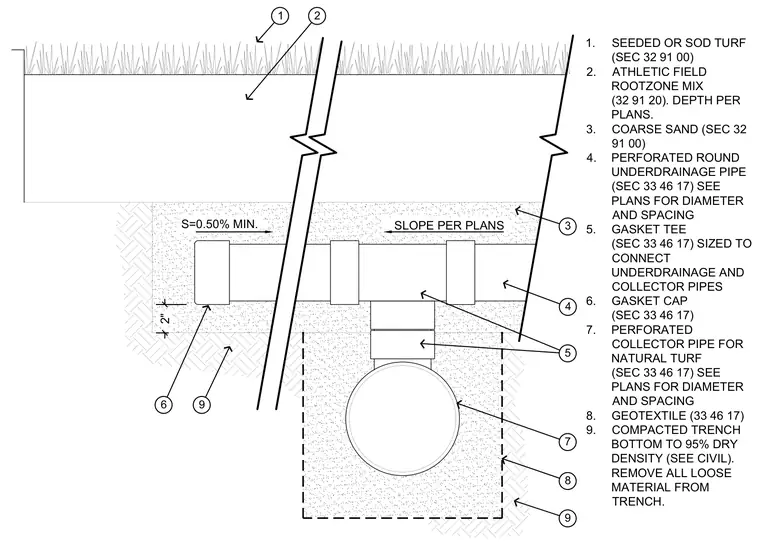

A lateral connection from an underdrainage pipe to a collector pipe runs beneath an athletic field turf system. The assembly rests on a compacted trench bottom lined with geotextile and backfilled with coarse sand. A perforated round underdrainage pipe connects to a perforated collector pipe using a gasket tee, with a gasket cap sealing the end of the run. Above the drainage layer sits an athletic field rootzone mix and seeded or sod turf.
1. SEEDED OR SOD TURF (SEC 32 91 00) 2. ATHLETIC FIELD ROOTZONE MIX (32 91 20). DEPTH PER PLANS. 3. COARSE SAND (SEC 32 91 00) 4. PERFORATED ROUND UNDERDRAINAGE PIPE (SEC 33 46 17) SEE PLANS FOR DIAMETER AND SPACING 5. GASKET TEE (SEC 33 46 17) SIZED TO CONNECT UNDERDRAINAGE AND COLLECTOR PIPES 6. GASKET CAP (SEC 33 46 17) 7. PERFORATED COLLECTOR PIPE FOR NATURAL TURF (SEC 33 46 17) SEE PLANS FOR DIAMETER AND SPACING 8. GEOTEXTILE (33 46 17) 9. COMPACTED TRENCH BOTTOM TO 95% DRY DENSITY (SEE CIVIL). REMOVE ALL LOOSE MATERIAL FROM TRENCH. S=0.50% MIN. SLOPE PER PLANS 2" 1 3 9 4 2 5 7 8 6 9
