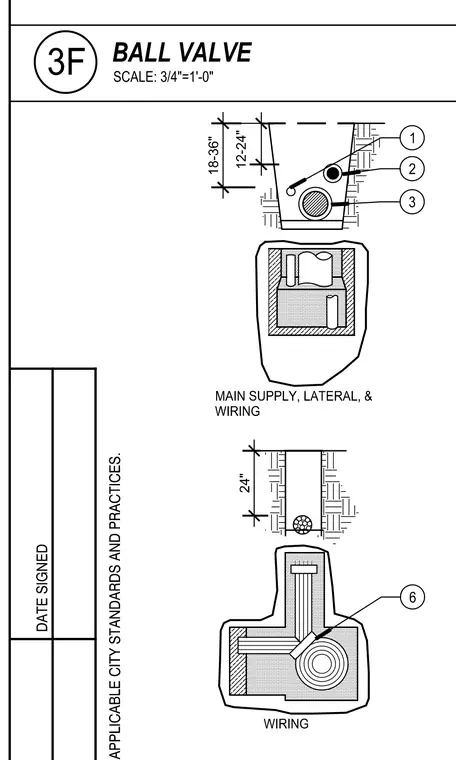

A ball valve installation within a utility trench incorporates main supply, lateral lines, and associated wiring. The trench profile indicates specified depth clearances ranging from eighteen to thirty-six inches for the upper zone and twelve to twenty-four inches for the adjacent utility run, with a separate twenty-inch vertical dimension detail. Plan views outline the spatial arrangement of the main supply, lateral connections, and conduit wiring. Callout numbers identify the specific components within the trench cross-sections.
