Kitchen Drawer Base Cabinet

Materials

Elements

About this detail

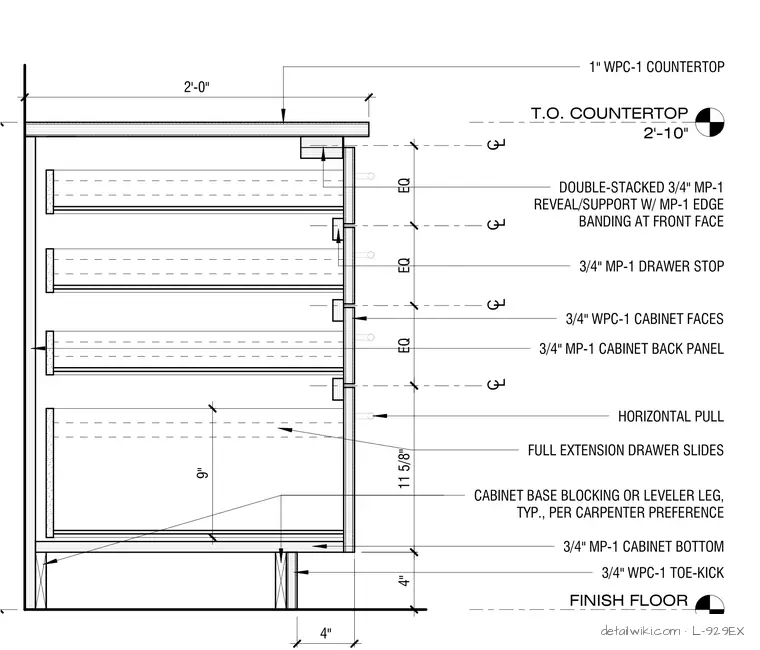

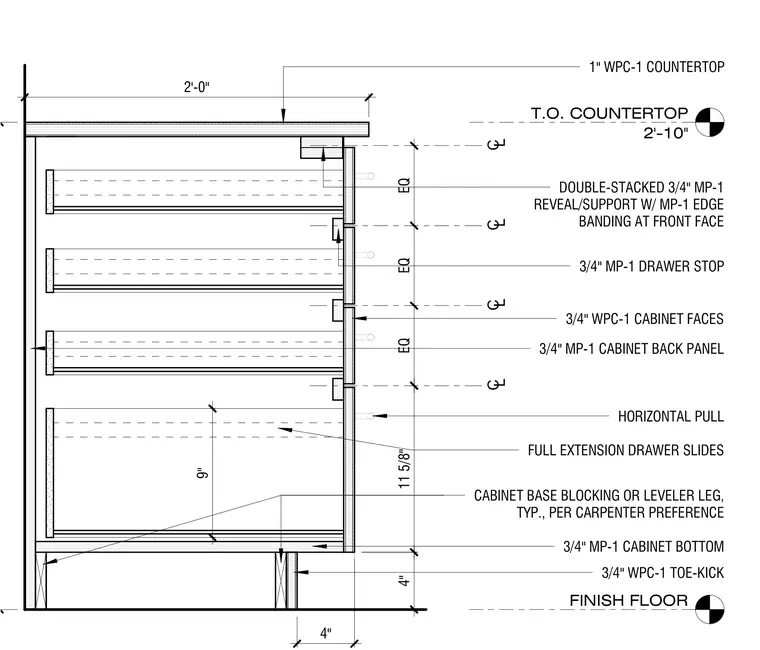

This millwork section details a kitchen drawer base cabinet featuring a one-inch thick countertop supported by cabinet side panels and blocking. The assembly incorporates four drawers with three-quarter-inch cabinet faces, horizontal pulls, full-extension drawer slides, and three-quarter-inch drawer stops. The cabinet rests on a four-inch toe-kick with base blocking or leveler legs installed per carpenter preference. Interior components include a three-quarter-inch back panel, a three-quarter-inch bottom panel, and double-stacked reveals with edge banding at the front face. Overall dimensions indicate a two-foot depth and a finish floor elevation of two feet ten inches to the top of the countertop.
