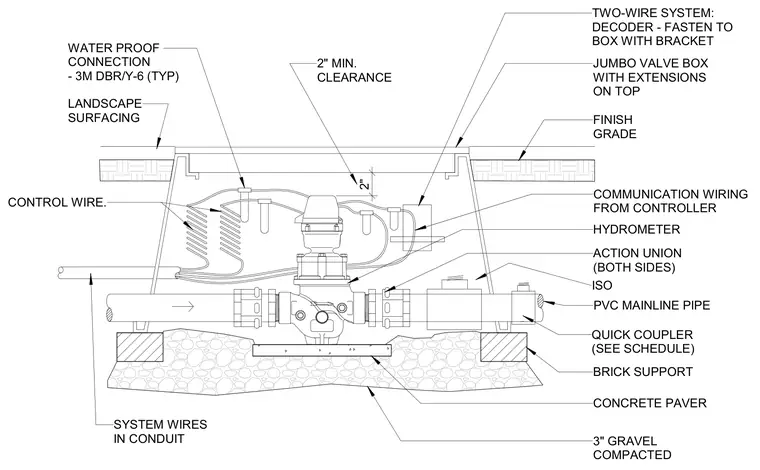

An irrigation hydrometer assembly is housed inside a jumbo valve box with extensions. The PVC mainline pipe connects to the hydrometer using action unions on both sides and incorporates an isolation quick coupler. Waterproof connections utilizing 3M DBR/Y-6 splices protect the control wires and two-wire decoder system, which fastens to the box with a bracket. The entire assembly rests on a concrete paver over three inches of compacted gravel, with brick supports beneath the valve box flanges and a minimum two-inch clearance maintained below the finish grade.
BRICK SUPPORT 3" GRAVEL COMPACTED ACTION UNION (BOTH SIDES) JUMBO VALVE BOX WITH EXTENSIONS ON TOP FINISH GRADE CONCRETE PAVER PVC MAINLINE PIPE HYDROMETER 2" 2" MIN. CLEARANCE WATER PROOF CONNECTION - 3M DBR/Y-6 (TYP) CONTROL WIRE. COMMUNICATION WIRING FROM CONTROLLER SYSTEM WIRES IN CONDUIT LANDSCAPE SURFACING ISO QUICK COUPLER (SEE SCHEDULE) TWO-WIRE SYSTEM: DECODER - FASTEN TO BOX WITH BRACKET
